LAPP 0012800 440 P Grey Control Data Cable 2 x 0.5mm² No Earth

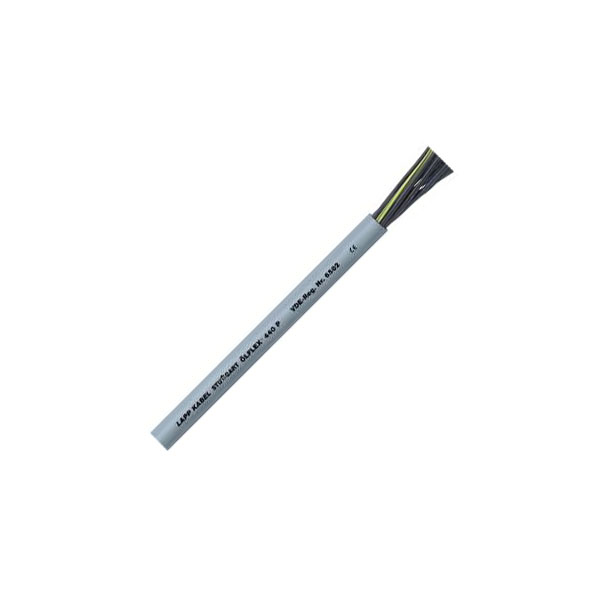

Image Representative of Range

LAPP 0012800 440 P Grey Control Data Cable 2 x 0.5mm² No Earth

LAPP
Order Code:

63-5330

Brand: LAPP MPN: 12800/1 EAN-13: 2050000536885
Qty Unit Price (Ex VAT)
5+ £2.59
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
366 available to back orderBack-order availability date - 09/01/2026

These silver grey control data cables from LAPP are water resistant with a special polyurethane sheath. They are ideal for use with construction machinery and in wet areas.


  • All-weather-ready
  • Bend radius (no. of ODs for fixed installation): 4
  • Bend radius (no. of ODs for flexible installation): 15
  • Cable features: PUR coating, Halogen-free, Flame-retardant
  • Cable Type: ÖLFLEX® 440 P Control wiring
  • Colour: Grey
  • Cross section 2 x 0.5mm²
  • Halogen free
  • Max. temperature range (fixed installation): +90°C
  • Max. temperature range (flexible installation): +90°C
  • Min. temperature range (fixed installation): -50°C
  • Min. temperature range (flexible installation): -40°C
  • No. of leads 2
  • Nominal voltage: 500V
  • Nominal voltage U0: 300V
  • Outside diameter: 5.9mm
  • Sold per metre: Yes
  • Test voltage: 3000V
  • Manufacturer's part 0012800

This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.
Colour Grey
Number of Cores 2
Insulation Material Polyurethane
Cable Diameter 5.9mm
Conductor Cross-section 2 x 0.5mm²
Sold by Metre Yes
