LAPP 0012641 ÖLFLEX® EB CY Sky Blue Data Cable 3 x 0.75mm² No Earth

LAPP
MPN
12641/1
Brand
LAPP
EAN-13
2050000541322
Order Code
63-5365
Country of Origin
Germany
View Full Product Range (3)

Discontinued

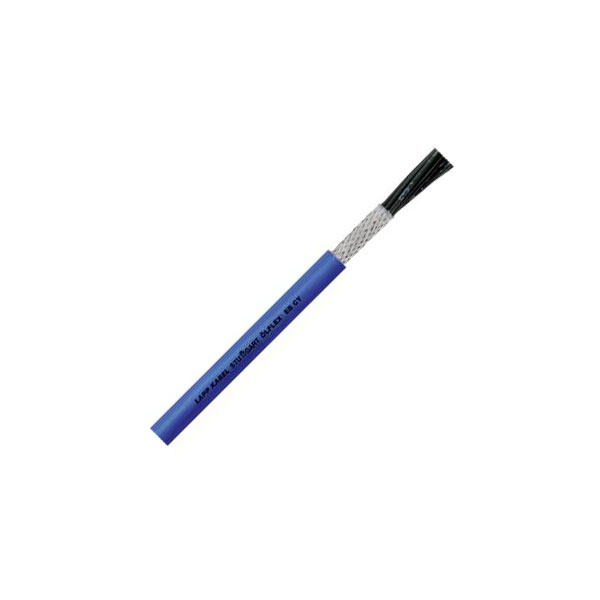

This data cable from LAPP has a sky blue PVC outer sleeve and is suitable for use within intrinsically safe circuits against electromagnetic interference.


  • Bend radius (no. of ODs for fixed installation): 6
  • Bend radius (no. of ODs for flexible installation): 20
  • Cable features: Shielded, Flame-retardant
  • Cable Type: ÖLFLEX® EB CY Control wiring
  • Colour: Sky blue
  • Cross section 3 x 0.75mm²
  • Insulation material: PVC
  • Max. temperature range (fixed installation): +80°C
  • Max. temperature range (flexible installation): +70°C
  • Min. temperature range (fixed installation): -40°C
  • Min. temperature range (flexible installation): -5°C
  • No. of leads 3
  • Nominal voltage: 500V
  • Nominal voltage U0: 300V
  • Outside diameter: 6.5mm
  • Sold per metre: Yes
  • Standards: VDE VDE 0250
  • Test voltage: 2000V
  • Manufacturer's part 0012641

This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.
Colour Blue
Number of Cores 3
Conductor Cross Section 3 x 0.75mm²
AWG Not Specified
Conductor Stranding Finely stranded
Insulation Material Polyvinyl Chloride (PVC)
Length Sold per metre
Cable Diameter 6.5mm
Sold by Metre Yes
Standards VDE VDE 0250
Type Control lead
