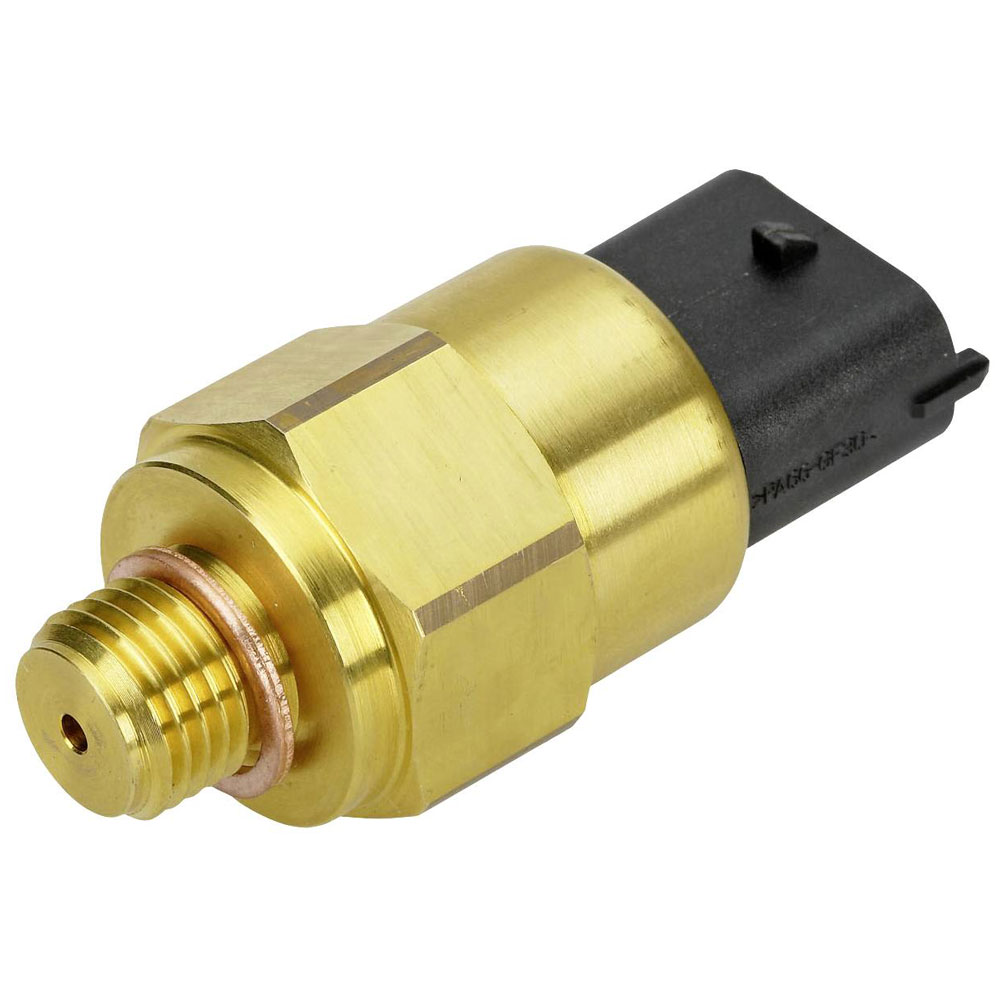

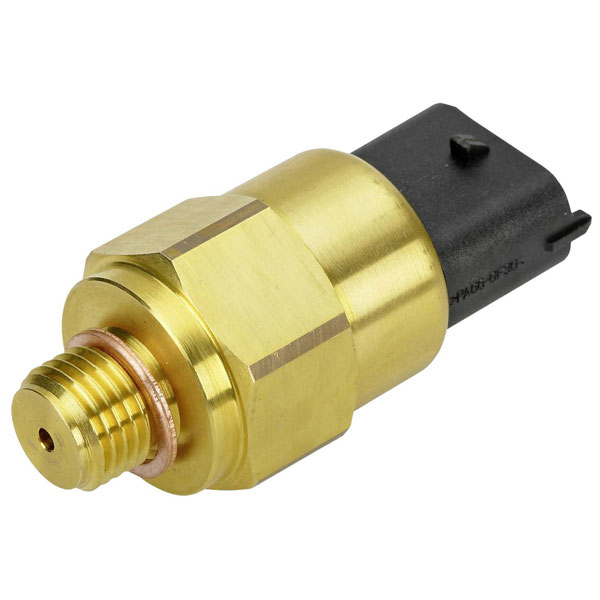

KYOCERA/AVX 9677010950 Pressure Sensor 0-10 bar M18 Diameter28x64 mm

KYOCERA/AVX
Standard range
Order Code:

09-6861

Brand: KYOCERA/AVX MPN: 9677010950 EAN-13: 2050008936243
Qty Unit Price (Ex VAT)
1+ £101.57
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
9 in stock, despatched in 4 working days

The KYOCERA/AVX 9677010950 pressure sensor can accurately measure air pressure from 0 bar up to 10 bar. This force detector features a compact design with dimensions of 28 mm in diameter and 64 mm in length, making it suitable for various installations. Typical applications include industrial systems requiring precise air pressure monitoring and regulation.
Type Pressure sensor
(Ø) 28mm
Accuracy 0.5%
Burst load 50bar
Connector M18
Dim (Ø x L) 28 mm x 64 mm
IP rating IP6K9K
Length 64mm
Max. operating voltage 5.5V
Max. temperature +125°C
Min. operating voltage -4.5V
Min. temperature -40°C
Misc Attribute 9677010950
Operating voltage -4.5 - 5.5 V
Output signal (max.) 4.5V
Output signal (min.) 0.5V
Outputs Voltage (analogue)
Pressure reading range 0 bar up to 10 bar
Pressure reading range (max.) 10bar
Pressure reading range (min.) 0bar
Resolution 2.5%
Weight 100g
