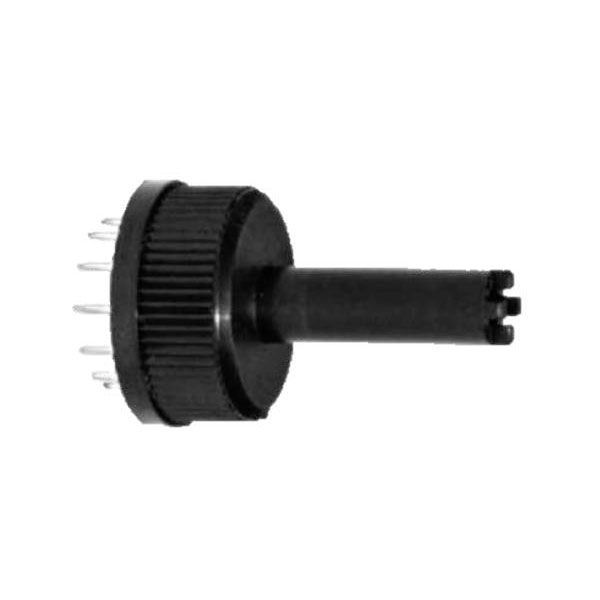

KYOCERA/AVX 9341900425 Rotary Switch 150V 130mA 5 Positions

The KYOCERA/AVX 9341900425 rotary switch features five switch positions and operates at 150 V DC/AC with a current rating of 130 mA. It is suitable for applications requiring precise control and selection, typically used in electronic equipment for changing circuits or modes. This switch provides a 15° angle between positions, delivering reliable performance in various settings.

Type	Rotary switch
Number of Positions	5
Index Stops	5
Number of Decks	1
Current Rating (Amps)	130mA
Actuator Type	Rotary Shaft
(Ø)	19.4mm
Angle of Throw	15°
Axle Ø	6mm
Casing/button Colour	Black
Connection	Pins
Contact Material	Copper silver plated
Dim	(Ø x L) 19.4 mm x 22.7 mm
Functions	latch
Length	22.7mm
Lighting Type	None
Material	Plastic
Operation type	Rotary switch
Switch postions	5
Switching Voltage	150V DC/AC
