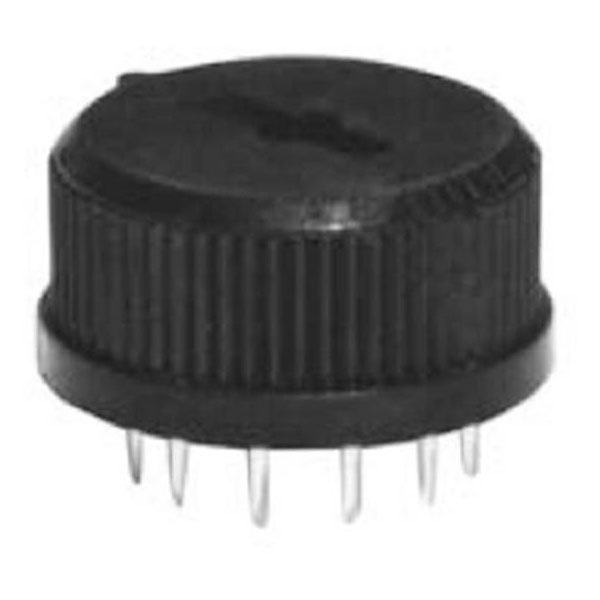

KYOCERA/AVX 9341700550 Rotary Switch 150V 130mA 3 Positions

The KYOCERA/AVX 9341700550 rotary switch features three switch positions and supports 150 V DC/AC with a current rating of 130 mA. It offers a 15-degree rotation between positions, ensuring precise control. Typically used in electronic and industrial applications, this switch provides reliable manual interface for circuit selection and control.

Type	Rotary switch
Number of Positions	3
Index Stops	3
Number of Decks	1
Current Rating (Amps)	130mA
Actuator Type	Knob
(Ø)	19.4mm
Angle of Throw	15°
Casing/button colour	Black
Connection	Pins
Contact Material	Copper silver plated
Dim	(Ø x L) 19.4 mm x 10 mm
Functions	latch
Length	10mm
Lighting Type	None
Material	Plastic
Operation type	Rotary switch
Switch postions	3
Switching Voltage	150V DC/AC
