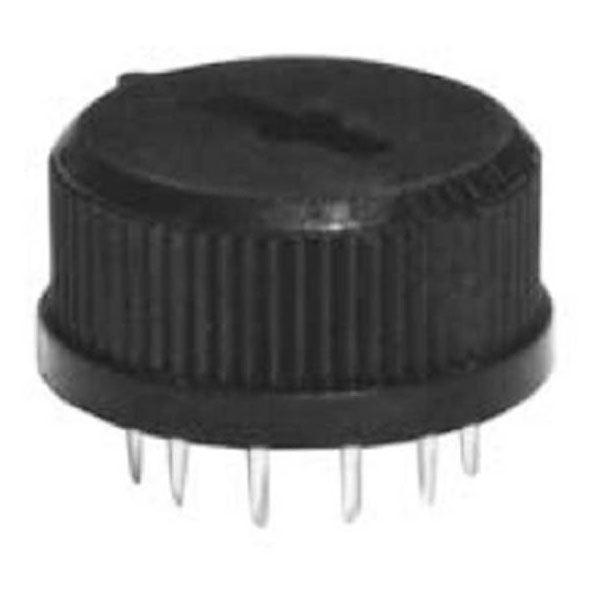

KYOCERA/AVX 9341700315 Rotary Switch 150V 130mA 4 Positions

The KYOCERA/AVX 9341700315 rotary switch is designed for applications requiring precise control with up to four switch positions, each at 15-degree increments. It operates at 150 V DC/AC and handles a current of 130 mA, making it suitable for various electronic and industrial settings. With its compact design, this switch is ideal for use in equipment that demands reliable and consistent operation.

Type	Rotary switch
Number of Positions	4
Index Stops	4
Number of Decks	1
Current Rating (Amps)	130mA
Actuator Type	Knob
(Ø)	19.4mm
Angle of Throw	15°
Casing/button Colour	Black
Connection	Pins
Contact Material	Copper silver plated
Dim	(Ø x L) 19.4 mm x 10 mm
Functions	latch
Length	10mm
Lighting Type	None
Material	Plastic
Operation type	Rotary switch
Switch postions	4
Switching Voltage	150V DC/AC
