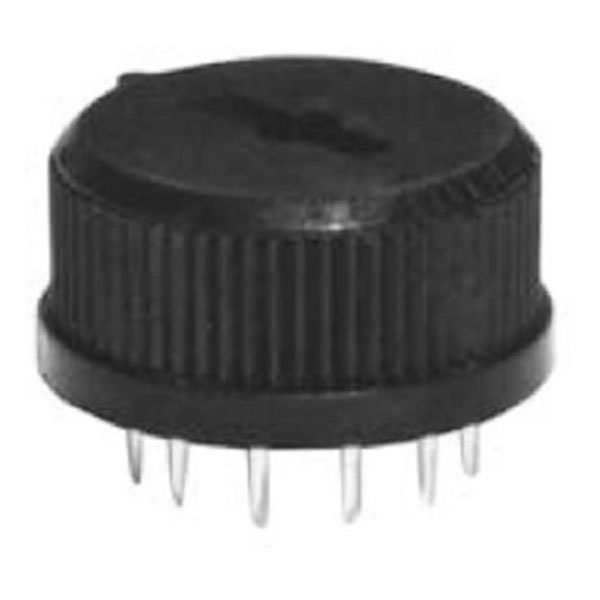

KYOCERA/AVX 9341700020 Rotary Switch 150V 130mA 7 Positions

The KYOCERA/AVX 9341700020 Rotary switch operates at 150 V DC/AC with a current rating of 130 mA. It features 7 switch positions at 15-degree intervals, making it suitable for precise selection tasks. This switch is ideal for use in electronic devices that require multi-position control.

Type	Rotary switch
Number of Positions	7
Index Stops	7
Number of Decks	1
Current Rating (Amps)	130mA
Actuator Type	Knob
(Ø)	19.4mm
Angle of Throw	15°
Casing/button Colour	Black
Connection	Pins
Contact Material	Copper silver plated
Dim	(Ø x L) 19.4 mm x 10 mm
Functions	latch
Length	10mm
Lighting Type	None
Material	Plastic
Operation type	Rotary switch
Switch postions	7
Switching Voltage	150V DC/AC
