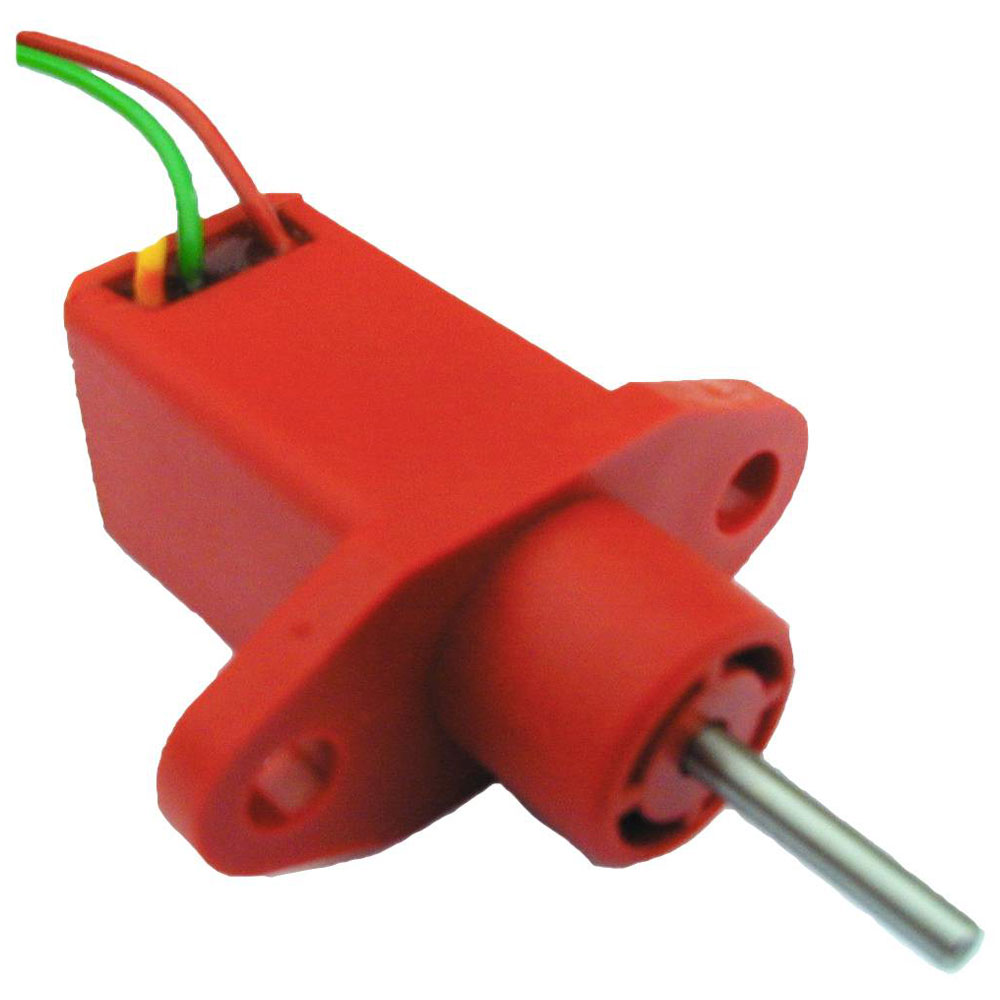

KYOCERA/AVX 4114902490 Rotary Potentiometer 10 kΩ Plastic Film Single Turn

KYOCERA/AVX 4114902490 is a rotary potentiometer characterised by a resistance value of 10 kO, utilising a plastic film element for precision and stability. This single-turn component is designed for applications requiring fine adjustment capabilities, such as audio equipment, variable frequency drives, and instrumentation controls. As a slide potentiometer, it offers reliable performance in a variety of environments, benefiting engineers seeking components with durable mechanical and electrical properties. The device's construction ensures longevity and consistent performance, making it an ideal choice for both prototyping and production in electronic systems.

Type	4114902490
Resistance	10kΩ
No of Turns	1
Case Dimensions	65mm
Connection	Open end cable
Content	1
Dimensions	(L x W x H) 65 x 20 x 20 mm
Height	20mm
Length	65mm
Max. temperature	+130°C
Maximum Temperature	+130°C
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Output	Mono
Product Type	Plastic film pot
Resistance characteristic	linear
Temperature Coefficient	25ppm/°C
Tolerance ±	0.2%
Width	20mm
