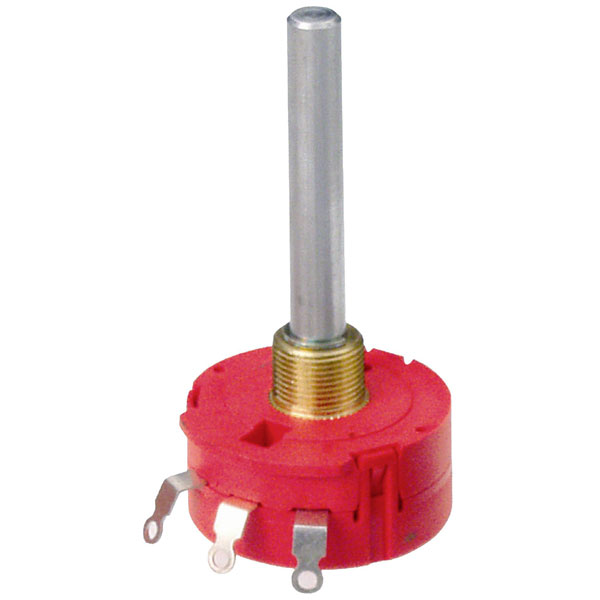

KYOCERA/AVX 3114309056 Wire-wound pot Mono 2 W 25 kΩ Rotary Potentiometer

KYOCERA/AVX 3114309056 is a wire-wound rotary potentiometer, typically classified under slide potentiometers, with a power rating of 2 watts and a resistance of 25 kilohms. This mono-channel device is designed to provide precise control of electrical voltage or current in various circuits by adjusting its rotational mechanism, making it suitable for applications requiring fine-tuning of electrical signals. Engineers often utilise this component in audio equipment, industrial controls, and instrumentation systems where reliable and accurate adjustment of resistance values is critical. The robust wire-wound design ensures durability and reliability in environments where consistent performance is essential, allowing for extended operational lifespan in demanding settings.

Type	3114309056
Resistance	25kΩ
Power Rating	2W
Lever Length	20mm
Actuating Force	2.5Ncm
Axle Diameter	6mm
Case Dimensions	28.5mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	28.5mm
Dimensions	(Ø x L) 28.5 mm x 15 mm
Electrical Angle	270°
Impact Tolerance	100Ncm
Length	15mm
Maximum Temperature	+90°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	140ppm/°C
Thread Length	10mm
Thread Size	M10
Tolerance ±	0.1%
