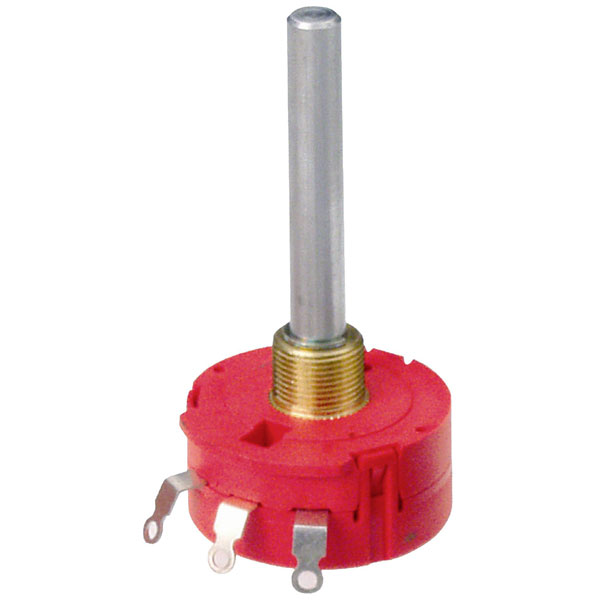

KYOCERA/AVX 3114307993 Wire-wound pot Mono 2 W 10 kΩ Rotary Potentiometer

KYOCERA/AVX 3114307993 is a wire-wound rotary potentiometer, rated at 2 watts with a resistance value of 10 kiloohms. This component is part of the slide potentiometer category, offering precision and reliability in various applications. Engineered to deliver accurate resistance control, it is ideal for use in circuits requiring variable voltage division, such as audio controls, signal processing equipment, and industrial automation systems. The mono design of this potentiometer ensures consistent performance across its operational range, making it a dependable choice for engineers seeking precise resistance adjustment. Its durable construction ensures longevity and stability in both consumer electronics and professional engineering environments.

Type	3114307993
Resistance	10kO
Power Rating	2W
Actuating Force	2.5Ncm
Axle Diameter	6mm
Case Dimensions	28.5mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	28.5mm
Dimensions	(Ø x L) 28.5 mm x 15 mm
Electrical Angle	270°
Impact Tolerance	100Ncm
Length	15mm
Lever Length	20mm
Max. temperature	+90°C
Maximum Temperature	+90°C
Mechanical Angle	300°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	140ppm/°C
Thread Length	10mm
Thread Size	M10
Tolerance ±	0.1%
