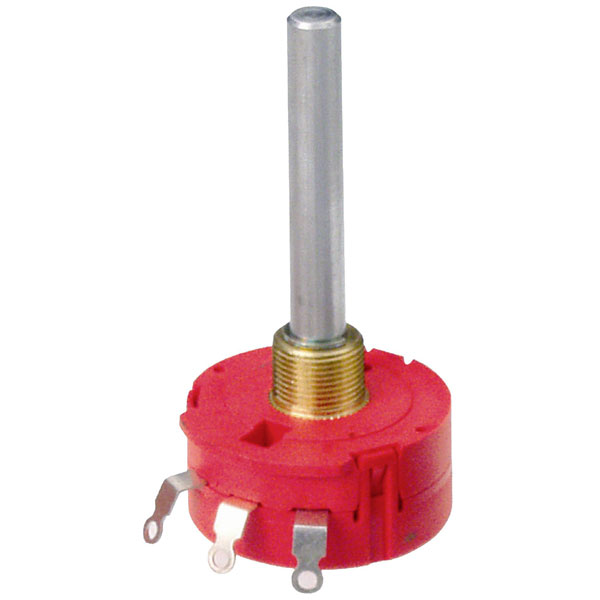

KYOCERA/AVX 3114307590 Rotary Potentiometer Wire-wound Mono 5kΩ 2W

KYOCERA/AVX 3114307590 is a rotary potentiometer featuring a wire-wound construction with a single-turn mono configuration designed for precision resistance control in electronic circuits. With a resistance value of 5 kO and a power rating of 2 watts, this potentiometer is optimal for applications requiring stable and reliable resistance adjustment under moderate power loads. Engineering applications typically include audio equipment, precision control systems, and testing apparatuses where fine-tuning of voltage or current is necessary. The component's robust build quality and consistent performance make it a suitable choice for both industrial and consumer electronics applications.

Type	3114307590
Resistance	5kΩ
No of Turns	1
Power Rating	2W
Actuating Force	2.5Ncm
Axle Diameter	6mm
Case Dimensions	28.5mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	28.5mm
Dimensions	(Ø x L) 28.5 mm x 15 mm
Electrical Angle	270°
Impact Tolerance	100Ncm
Length	15mm
Lever Length	50mm
Max. temperature	+90°C
Maximum Temperature	+90°C
Mechanical Angle	300°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	10mm
Thread Size	M10
Tolerance ±	0.1%
