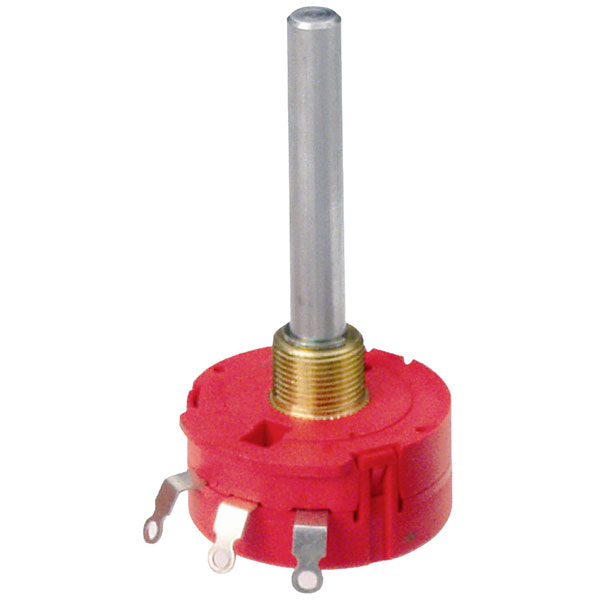

KYOCERA/AVX 3114305998 Wire-wound pot Mono 2W 1kΩ Control Potentiometer

KYOCERA/AVX 3114305998 Control Potentiometer is a high-performance, wire-wound, mono slide potentiometer designed for precise control in various electronic applications. With a power rating of 2 watts and a resistance value of 1 kO, it offers reliable functionality and versatility for engineers. This potentiometer is ideally suited for integration into audio mixing boards, instrumentation panels, and other precision control systems where durability and accuracy are paramount. Its construction ensures excellent linearity and stability over repeated use, making it a dependable choice for professional and industrial applications.

Type	3114305998
Resistance	1kΩ
Power Rating	2W
Actuating Force	2.5Ncm
Axle Diameter	6mm
Case Dimensions	28.5mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	28.5mm
Dimensions	(Ø x L) 28.5 mm x 15 mm
Electrical Angle	270°
Impact Tolerance	100Ncm
Length	15mm
Lever Length	20mm
Max. temperature	+90°C
Maximum Temperature	+90°C
Mechanical Angle	300°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	10mm
Thread Size	M10
Tolerance ±	0.1%
