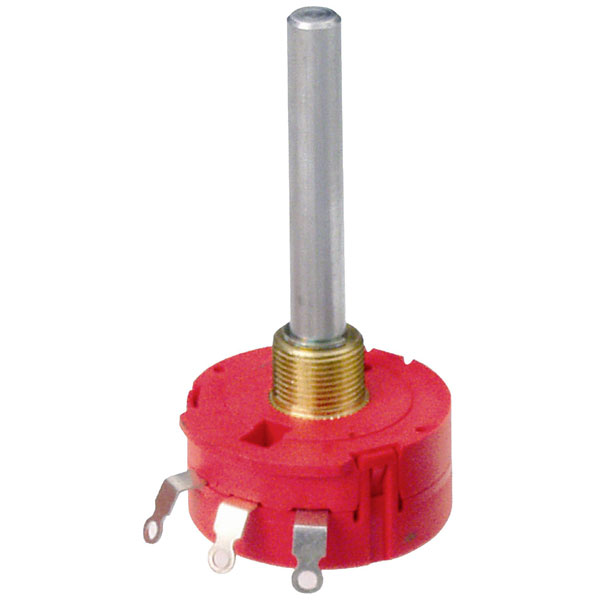

KYOCERA/AVX 3114303601 Wire-wound pot Mono 2 W 50 Ω Rotary Potentiometer

KYOCERA/AVX 3114303601 is a wire-wound potentiometer designed for precision in electronic applications, featuring a mono configuration and a resistance value of 50 ohms. It is manufactured to handle a power rating of 2 watts, providing robust performance in demanding environments. As a rotary potentiometer, this component offers excellent linearity and stability, making it ideal for use in audio equipment, control settings in instrumentation, and as a variable resistor in circuit tuning. Its wire-wound construction ensures high accuracy and reliability over prolonged usage, meeting the requirements for precise control in various industrial and consumer electronics applications.

Type	3114303601
Resistance	50Ω
Power Rating	2W
Actuating Force	2.5Ncm
Axle Diameter	6mm
Axle length	50mm
Case Dimensions	28.5mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	28.5mm
Dimensions	(Ø x L) 28.5 mm x 15 mm
Electrical Angle	270°
Impact Tolerance	100Ncm
Length	15mm
Maximum Temperature	+90°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	140ppm/°C
Thread Length	10mm
Thread Size	M10
Tolerance ±	0.1%
