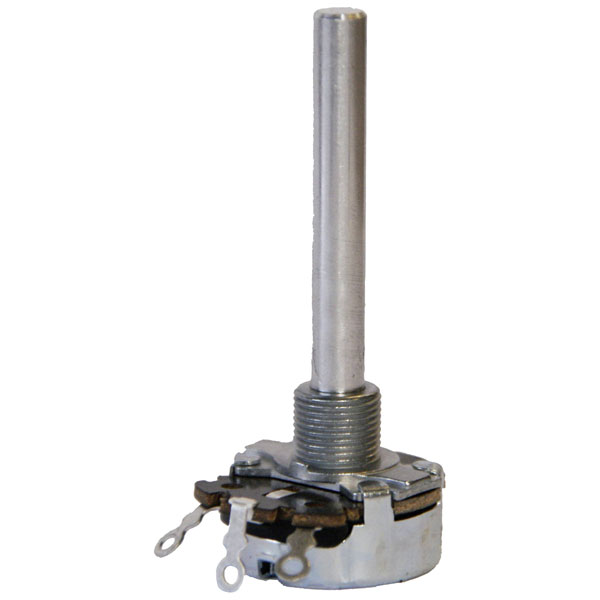

KYOCERA/AVX 3104604407 Wire-wound Pot Rotary 4W 220Ω Mono 1pc Durable Design

KYOCERA/AVX 3104604407 is a wire-wound rotary potentiometer designed for precision control in electrical circuits. This slide potentiometer features a power rating of 4 watts and a resistance of 220 ohms, supporting mono configuration in a compact, durable form that ensures long-term reliability. Its robust construction makes it suitable for demanding applications such as audio equipment, instrumentation control systems, and industrial automation where precise variable resistance is required. The product is designed to withstand rigorous usage while maintaining performance accuracy, offering engineers a dependable solution for both prototyping and commercial production environments.

Type	3104604407
Resistance	220Ω
Power Rating	4W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Length	12mm
Lever Length	16mm
Maximum Temperature	+90°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.1%
