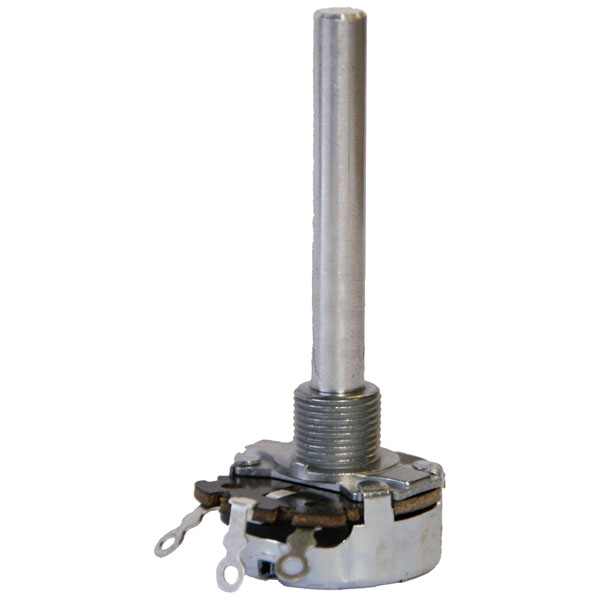

KYOCERA/AVX 3104603998 Wire-wound pot 4 W 100 Ω Mono Rotary Potentiometer

KYOCERA/AVX 3104603998 is a high-performance wire-wound potentiometer designed for precise resistance modulation, specified at 4 watts with a resistance value of 100 ohms. As a mono rotary potentiometer, this component features a wire-wound resistive element, offering excellent linearity and precision for demanding applications. Its robust design ensures reliability and longevity in various operating conditions, making it suitable for use in professional audio equipment, industrial control systems, and laboratory instrumentation where precise voltage or signal adjustments are required. The KYOCERA/AVX 3104603998 potentiometer, recognised for its consistency and durability, is an excellent choice for engineers seeking dependable performance in their electronic circuits.

Type	3104603998
Resistance	100Ω
Power Rating	4W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Length	12mm
Lever Length	50mm
Max. temperature	+90°C
Maximum Temperature	+90°C
Mechanical Angle	300°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.1%
