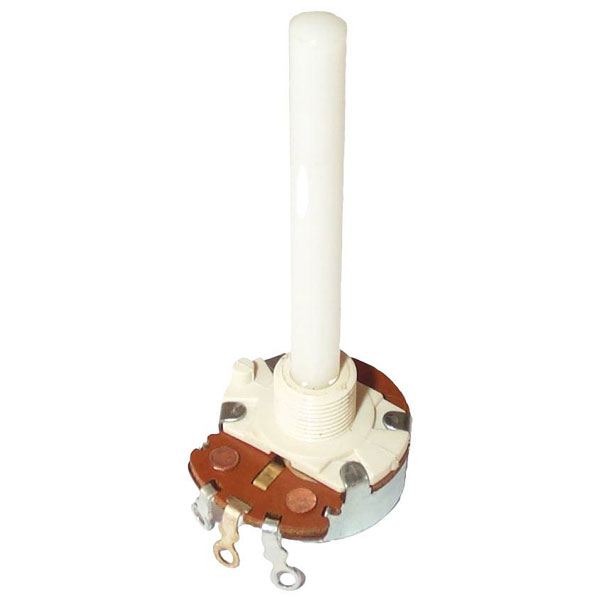

KYOCERA/AVX 104705673 Single turn rotary potentiometer 0.5 W 250 kΩ

KYOCERA/AVX 104705673 is a single turn rotary potentiometer designed for precision in voltage and signal adjustment applications. With a power rating of 0.5 watts and a resistance of 250 kilo-ohms, this component offers reliable performance in controlling electrical parameters within circuits. Often utilised in audio equipment, instrumentation, and control systems, the potentiometer allows for fine tuning of electronic devices where accurate resistance variation is necessary. Its mono configuration and robust construction make it suitable for repeated use in diverse engineering environments. Additionally, its slide potentiometer design ensures ease of integration and operation in both prototyping and production phases.

Type	10,000 cycles
Resistance	250kΩ
No of Turns	1
Power Rating	0.5W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 11.5 mm
Electrical Angle	270°
Impact Tolerance	113Ncm
Insulation Resistance	1500V
Length	11.5mm
Lever Length	50mm
Maximum Temperature	+70°C
Mechanical Angle	320°
Minimum Temperature	-25°C
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	linear
Temperature Coefficient	500ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.2%
