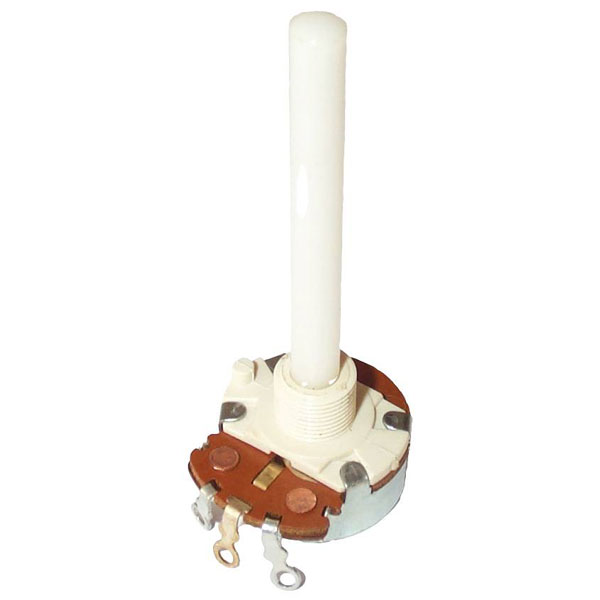

KYOCERA/AVX 104705671 Single turn rotary potentiometer 0.5W 250kΩ

KYOCERA/AVX 104705671 is a single turn rotary potentiometer, notable for its ability to offer precise resistance adjustment with a power rating of 0.5 watts and a resistance value of 250 kilohms. This component belongs to the category of slide potentiometers and is characterised by its single-turn operation, making it suitable for applications requiring limited rotational adjustment to fine-tune resistance settings. Engineers often employ this device in audio equipment, signal processing circuits, and other electronic applications where smooth, variable resistance is required. Its durable construction and reliable performance make it a preferred choice in high-precision electronic control environments, ensuring consistent functionality in adjusting voltage and current levels within circuits.

Type	10,000 cycles
Resistance	250kΩ
Power Rating	0.5W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Axle length	50mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 11.5 mm
Electrical Angle	270°
Impact Tolerance	113Ncm
Insulation Resistance	1500V
Length	11.5mm
Maximum Temperature	+70°C
Mechanical Angle	320°
Minimum Temperature	-25°C
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	linear
Temperature Coefficient	500ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.2%
