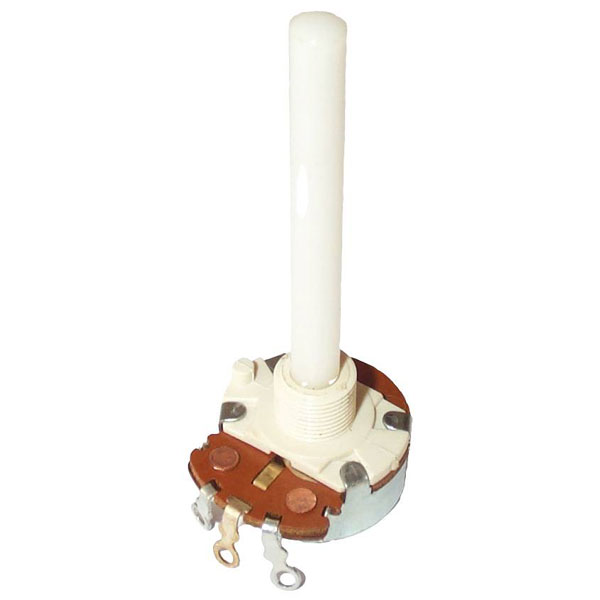

KYOCERA/AVX 104705320 Single turn rotary potentiometer 0.5W 100kΩ 1pc

KYOCERA/AVX 104705320 is a single turn rotary potentiometer designed to provide precise variable resistance with a power rating of 0.5 watts and a total resistance of 100 kilohms. As a type of slide potentiometer, it features a mono configuration suitable for applications requiring fine-tuning of circuit parameters, such as in audio equipment, sensor interfaces, and electronic test gear. Its robust construction and high reliability make it ideal for use in professional engineering environments where accurate resistance adjustment is crucial. The component is commonly utilised in applications where space is limited but precision cannot be compromised, offering engineers a reliable solution for dynamic control in sophisticated electronic designs.

Type	10,000 cycles
Resistance	100kΩ
Power Rating	0.5W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Axle length	50mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 11.5 mm
Electrical Angle	270°
Impact Tolerance	113Ncm
Insulation Resistance	1500V
Length	11.5mm
Maximum Temperature	+70°C
Mechanical Angle	320°
Minimum Temperature	-25°C
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	linear
Temperature Coefficient	500ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.2%
