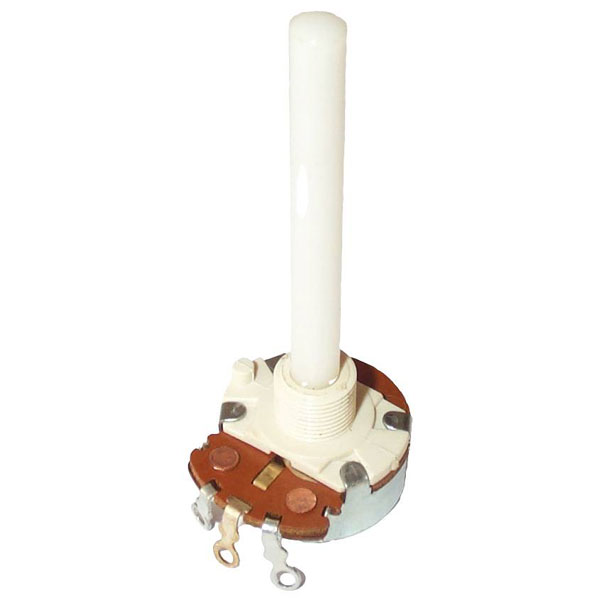

KYOCERA/AVX 104705316 Single turn rotary potentiometer 0.5 W 100 kΩ

KYOCERA/AVX 104705316 is a single turn rotary potentiometer designed with precision and reliability for various electronic applications. With a resistance of 100 kO and a power rating of 0.5 watts, this slide potentiometer offers improved control and fine adjustment capabilities, making it ideal for use in circuits requiring variable resistance. Common applications include audio volume control, position sensors, and in adjustable voltage dividers, where accurate performance is essential. The component's robust construction and dependable operation ensure it can perform effectively in both consumer electronics and industrial systems.

Type	10,000 cycles
Resistance	100kΩ
Power Rating	0.5W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Axle length	50mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 11.5 mm
Electrical Angle	270°
Impact Tolerance	113Ncm
Insulation Resistance	1500V
Length	11.5mm
Maximum Temperature	+70°C
Mechanical Angle	320°
Minimum Temperature	-25°C
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	linear
Temperature Coefficient	500ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.2%
