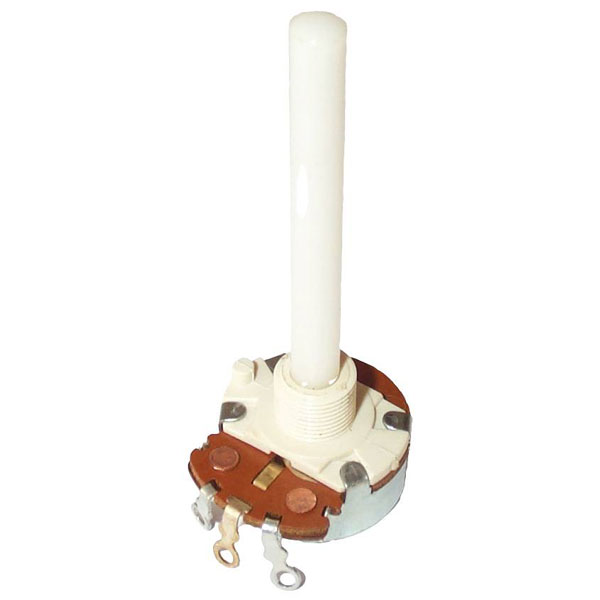

KYOCERA/AVX 104704970 Rotary Potentiometer Single Turn 0.5W 50kΩ

KYOCERA/AVX 104704970 is a rotary potentiometer designed for precision control in electronic circuits. This single-turn slide potentiometer offers a resistance value of 50 kO with a power rating of 0.5 watts, making it well-suited for applications where fine adjustments in resistance are necessary. Its robust design ensures reliability and accuracy, allowing it to be used in various engineering applications such as audio equipment, adjustable power supplies, and calibration devices. The component facilitates simple integration into circuit designs, providing engineers with an efficient solution for resistance modulation.

Type	104704970
Resistance	50kΩ
No of Turns	1
Power Rating	0.5W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 11.5 mm
Electrical Angle	270°
Impact Tolerance	113Ncm
Length	11.5mm
Lever Length	50mm
Maximum Temperature	+70°C
Mechanical Angle	320°
Minimum Temperature	-25°C
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	linear
Temperature Coefficient	500ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.2%
