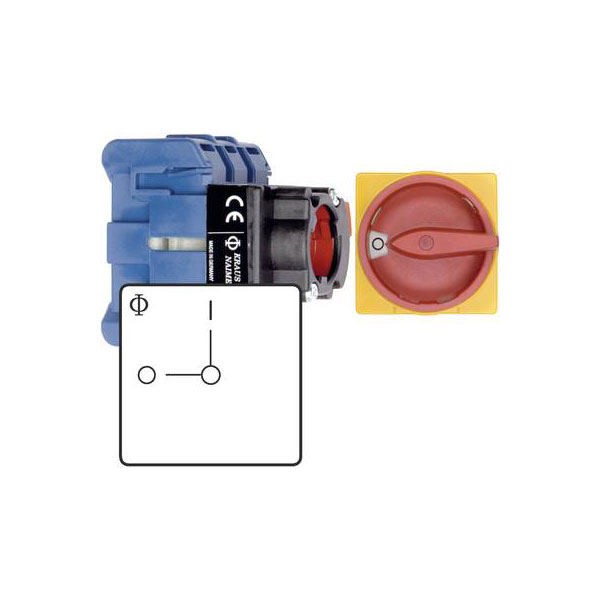

Kraus & Naimer KG20B.T203/01.FT2 Isolator Switch 25A 1x90° Red/Yellow

The Kraus & Naimer isolator switch KG20B.T203/01.FT2 has a 25 A rating and operates at a 90° angle. It features a red and yellow design, enhancing visibility and safety. Ideal for isolating electrical circuits, it is commonly used in industrial and commercial settings for emergency stops or maintenance purposes.

Connection	Plug & Clip
Functions	latch
IP Rating	IP66
Length	64mm
Misc Attribute 1	Quick mounting 22mm
Mounting Type	Centre lock
Operation type	EPO rotary switch
Power Rating	7.5kW
Print motif	0/I
Recess Diameter	22mm
Size/ Dimensions	(L x W) 64 mm x 64 mm
Switch position	3 x Off/On
Switching angle	1 x 90 °
Switching current (max.)	25A
Type	Isolator switch
Width	64mm
