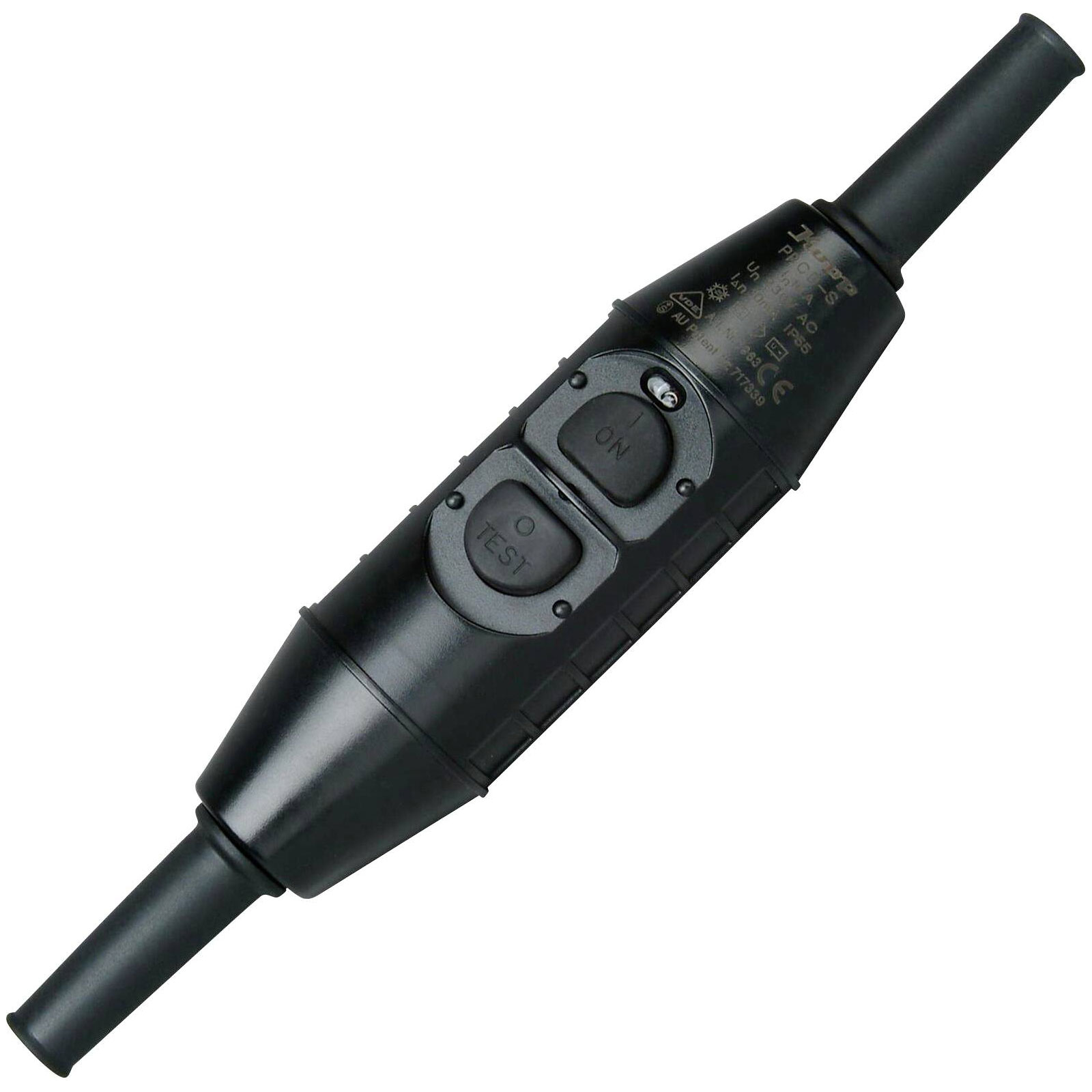

Kopp 196300018 RCCB in-line switch is a product, also referred to as 3437773. This robust switch operates at 230V and offers a high level of safety with an IP55 rating, making it well-suited for environments requiring reliable moisture and dust protection. Engineered for workplace safety supplies, the device is typically used in industrial electrical systems to provide a crucial layer of protection against electrical faults by interrupting abnormal currents. The RCCB switch is encapsulated in a durable black casing, ensuring it maintains operational integrity under demanding conditions, thus making it an ideal choice for applications such as manufacturing facilities and construction sites.
| IP Rating |
IP55 |
| Type |
RCCB in-line switch |
| Additional equipment possible |
false |
| Ambient temperature during operating |
-25 - 40°C |
| Colour |
Black |
| Connectable conductor cross section multi-wired |
1.50 - 2.50mm² |
| Connectable conductor cross section solid-core |
N/A |
| Current Rating |
16A |
| Differential current rating |
0.01A |
| Explosion-proof |
false |
| Frequency |
50 Hz |
| Leakage current type |
A |
| Mounting method |
Cable |
| Nominal Voltage |
230V |
| Number of Poles |
3 |
| Pollution degree |
2 |
| Rated current |
16.00A |
| Rated fault current |
0.01A |
| Rated impulse withstand voltage Uimp |
2.50kV |
| Rated insulation voltage Ui |
1500V |
| Rated voltage |
230V |
| Selective protection |
false |
| Short-circuit breaking capacity (Icw) |
1.500kA |
| Short-time delayed tripping |
false |
| Surge current capacity |
0.250kA |
| Voltage type |
AC |
| With interlocking device |
false |
