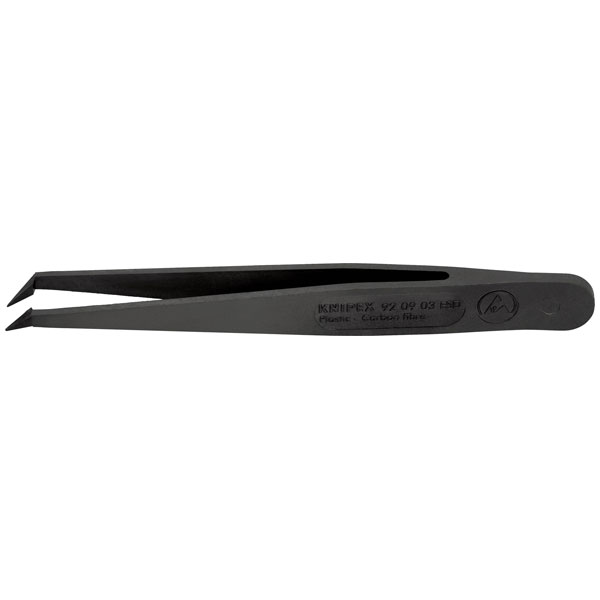

KNIPEX 92 09 03 ESD Plastic Tweezers ESD Smooth 110 mm

92 09 03 ESD Plastic Tweezers ESD
ESD tweezers are made of 30% carbon fibre reinforced plastic, are electrically and thermally highly conductive and are characterised by high resistance to abrasion and scratching. With a surface resistance between 10^2 and 10^4 ohms to compensate in a controlled manner the differences in potential between the operator and the electronic components. ESD plastic tweezers are temperature-stable up to 130° C, short-term use is possible at up to 190° C. The carbon fibre reinforced plastic of the ESD variants is extremely flexible, fatigue-resistant, vibration-reducing and water-repellent, with good chemical resistance to most oils, greases, fuels and nonpolar solvents. ESD plastic tweezers are ideal for maximum surface protection when handling sensitive electronic components, micro-mechanical parts, as well as glass and ceramic components. ESD plastic tweezers: also available as a set (92 00 05 ESD).

Surface: matt finish

Finish: angled 45°

Tips width (A): 0.5 mm

Tips width (B): 0.4 mm

Tips width (C): 5.8 mm

Tips width (D): 8.5 mm

Tweezers tip version: pointed

Corrosion-resistant: yes

Acid resistance: very good

ESD-tested: yes

VDE tested: no

Sectors: electronics

Magnetic: non-magnetisable (100%)

Behaviour: electrically dissipative

Type	Tweezers
Point Type	Pointed, curved (45°), fine
Length	110mm
Material	Plastic
Dim	(L x W) 110 mm x 15 mm
Jaw tip width	0.4mm
Jaw Width	8.5mm
Misc Attribute	Angled 45 °
Range of use	ESD
Tip Size	15mm
Width	15mm
