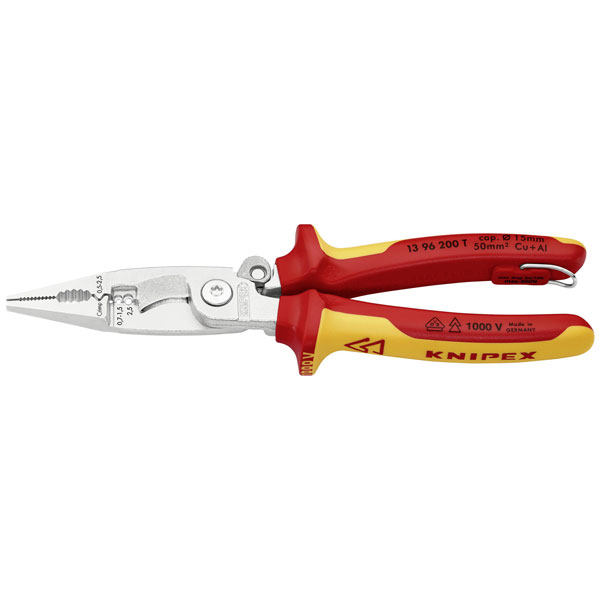

13 96 200 T Pliers for Electrical Installation6 functions in one pair of pliers. to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules. Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material. Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes. Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm². Crimping die for wire ferrules 0.5 - 2.5 mm². Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm. Slim dimensions for easy access. Bolted joint: precise, zero backlash operation of pliers. Pliers with integrated, insulated tether attachment point for a tool tether.
Cutting capacity copper cable, multiple-stranded: Ø 15 mmCutting capacity copper cable, multiple-stranded: 50 mm²Stripping capacity for single strands: 0.75 — 1.5 mm² / 2.5 mm²Capacity in square millimetres: 0.5 — 2.5 mm²AWG: 1 / 0 Drop Protection System: yes VDE tested: yes
| Type |
Multifunction pliers |
| Capacity in square millimetres |
0.5 - 2.5mm² |
| Cutting capacity copper cable, multiple-stranded |
50mm² |
| Cutting capacity copper cable, multiple-stranded (diameter) |
15mm |
| Handles |
insulated with multi-component grips, VDE-tested with integrated insulated tether attachment point for a tool tether |
| Handles Feature |
VDE, Tethered Tools |
| Head |
chrome-plated |
| IEC |
IEC 60900 |
| Joint Design |
Bolted joint |
| Length |
200mm |
| Material |
Steel |
| Profile |
Mandrel-Crimp |
| Stripping capacity for cross-sections |
0.75 - 1.5mm |
| Style |
flat jaws |
| Suitable For |
Ferrules |
| Surface |
chrome-plated |
| Weight |
280g |
| Width |
63mm |
