Klauke 704 Pin Terminal Yellow Insulated 0.10-0.40mm² DIN 46231

Image Representative of Range

Klauke 704 Pin Terminal Yellow Insulated 0.10-0.40mm² DIN 46231

Klauke
Standard range
Order Code:

12-2859

Brand: Klauke MPN: 704 EAN-13: 2050001364272
Qty Unit Price (Ex VAT)
1+ £0.257
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
345 in stock, despatched in 4 working days

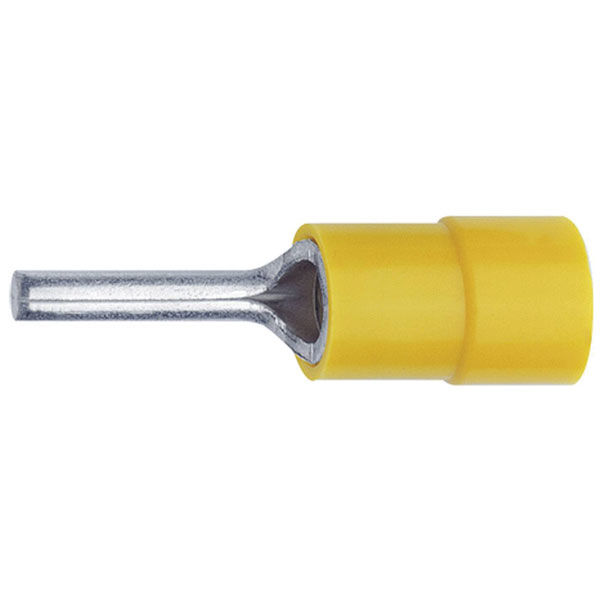

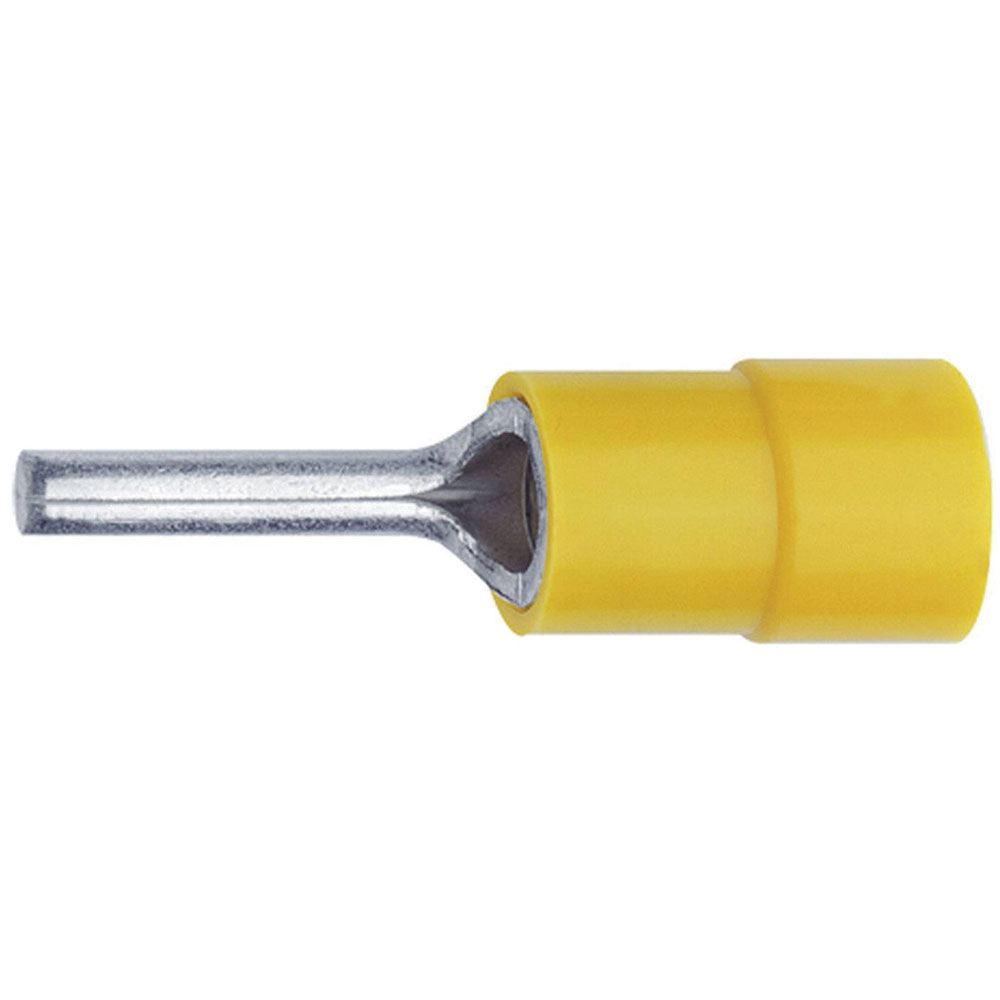

The Klauke 704 pin terminal is a partially insulated, yellow crimp connector designed to accommodate wire sizes of 0.10 mm² to 0.40 mm². Manufactured by Klauke, this blade terminal is ideal for creating reliable electrical connections in various electronic applications. It is commonly used in automotive and industrial settings for secure and efficient wiring.
Type Pin terminal
Contact material Cathode copper, tin plated
Crimp area (max.) 0.40mm²
Cross section 0.1 - 0.4mm²
Cross-section range 0.10 - 0.40 mm²
Factory colour Yellow
Insulation PA.
Insulation material PA
Insulation type Partially insulated
Material (details) Cu-ETP, tin-plated
max. cross section 0.40mm²
Min. cross section 0.10mm²
Pin length 9mm
Pin Ø 1.4mm
RoHS-compliant Yes
Support sleeve No
Temperature range up to +105°C
