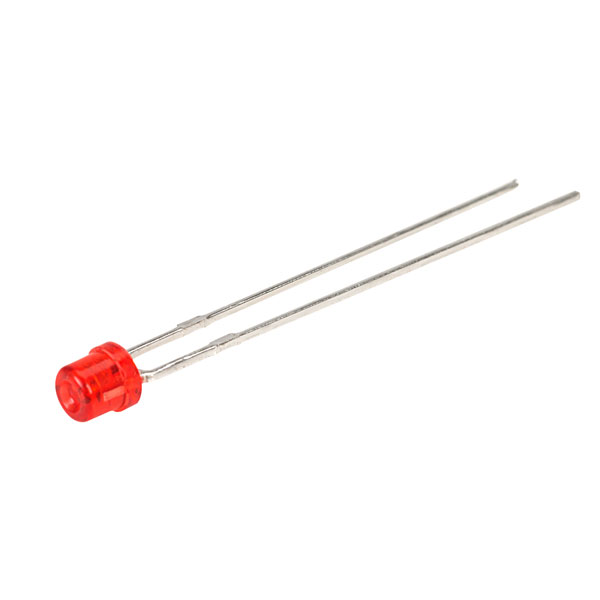

Miniature 3mm cylindrical high efficiency red LED from Kingbright with a transparent concave lens that provides a wide viewing angle and an even spread of light. These well designed components from the Kingbright L-133 Series are extremely reliable having been made with only the finest materials, while the source colour devices are made with Gallium Arsenide Phosphide.
Cathode identified by short lead Wide viewing angle Low power consumption Reliable and rugged Long life - solid state reliability
Rapid Electronics are Kingbright''s leading UK distributor of LEDs. To find out more about the full range of Kingbright products please visit Rapid''s Kingbright page .
Dominant Wavelength
625nm
Forward Current
30mA
Forward Voltage Typical
2V
LED Colour
Red
Lens Type
Red transparent
Luminous Intensity
12.5mcd
Max Operating Temp
+85°C
Minimum Operating Temp
-40°C
Reverse Voltage
5V
Size
3mm
Viewing Angle
130°
