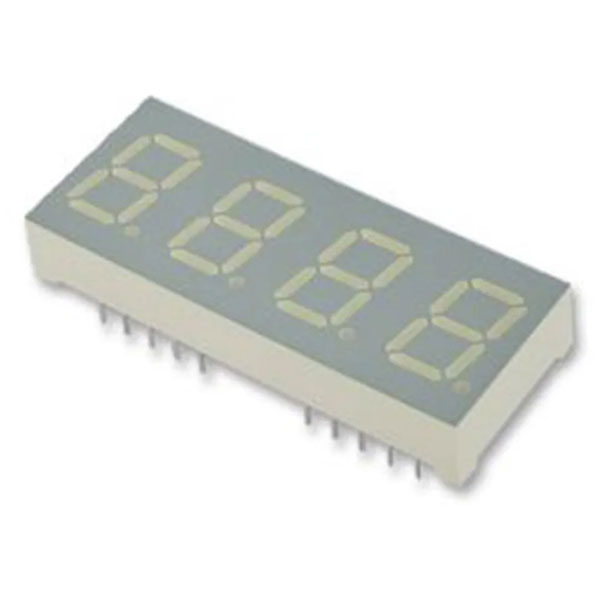

Kingbright CC04-41SURKWA 4 Digit 7 Segment LED Display CC Yellow 11 mcd

Kingbright CC04-41SURKWA 4 Digit 7 Segment LED Display CC Yellow 11 mcd - A range of quad-digit 7-segment LED displays from Kingbright. In addition to the four digits plus decimal points, most of these displays feature a colon between the two central digits allowing them to correctly display time in 12 or 24-hour format.

The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

• Display Type: 7-Segment
• Number of Characters: 4
• LED Colours: Red
• Number of Segments: 7
• Dominant Wavelength: 630 nm
• Character Width: 6mm
• Character Height: 10.2mm
• Common Connection: Cathode
• Mounting Type: Through Hole
• External Height: 6.8mm
• External Depth: 16mm
• External Width: 40.4mm
• External Dimensions: 40.4 x 16 x 6.8mm
• Luminous Intensity: 87 mcd
• Colour of Face: Grey
• Power Dissipation: 75mW
• Forward Voltage: 2 V
• Minimum Operating: Temperature -40°C
• Decimal Orientation: Right Side
• Forward Current: 30mA
• Operating Temperature Range: -40 → +85°C
• Series: CC04
• Maximum Operating Temperature: +85°C

Rapid Electronics are Kingbright''s leading UK distributor of LEDs. To find out more about the full range of Kingbright products please visit Rapid''s Kingbright page.
