Kerafol SOFTTHERM86/200100X100X1 86/200 Thermal Pad 1W/mK Gap Fill 100x100x1mm

Kerafol
MPN
SOFTTHERM 86/200 100x100x1
Brand
Kerafol
EAN-13
2050000369056
Order Code
54-4224
Country of Origin
Germany
View Full Product Range (2)
Qty Unit Price (Ex VAT)
1+ £4.98
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Despatched within 4 working days - 236 in stock

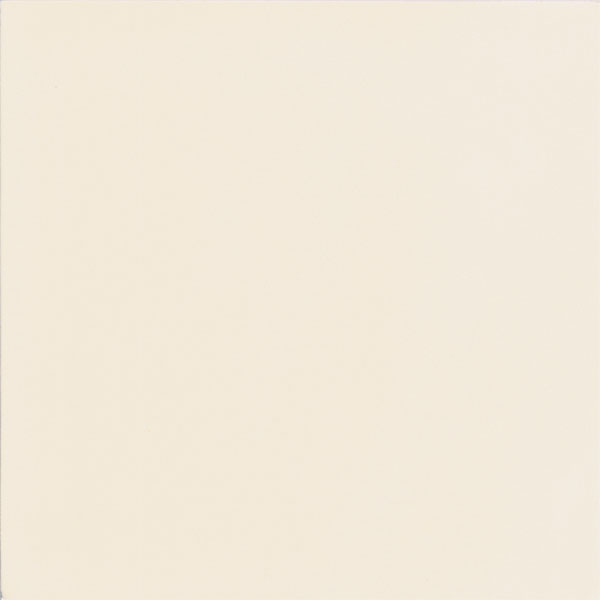

A 100 x 100 x 1mm Softtherm 86/200 thermal pad that is a highly elastic, ceramic-filled film that has excellent compressability and optimum plasticity as well as good thermal conductivity and electrical performance. The mechanical performance of this pad makes it ideal for compensating for differences in the planarity of components and surfaces and also in pressure-sensitive applications. Suitable application areas include RD-RAM memory modules, heat pipe thermal solutions, automotive engine systems, control units, plasma supply consoles.


  • Optimised thermal transition
  • Good properties even at very low contact pressure
  • Fully crosslinked
  • High self-adhesion
  • Flame class UL 94V-0
Type Thermally conductive pad
Thermal Conductivity 1W/m-K
Size 100 x 100 x 1mm
Breakdown Voltage 8000V
Colour Rose, Yellow
Maximum Temperature 200°C
Min. temperature -60°C
Temperature Range -60 to +200
