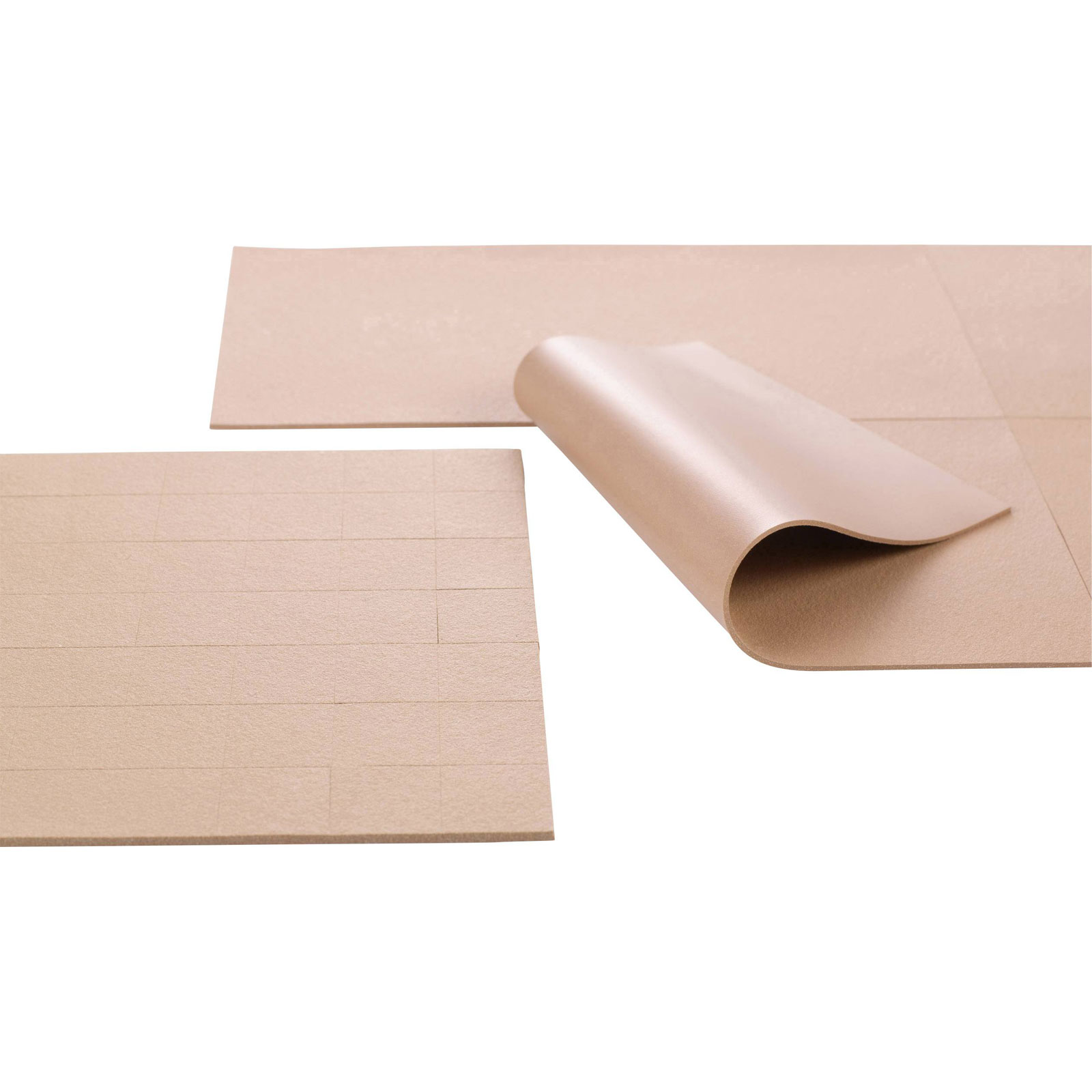

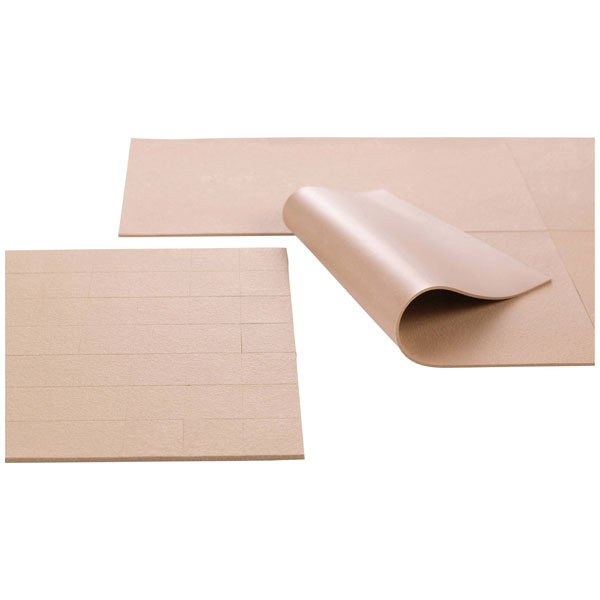

Kerafol SOFTTHERM 86/450 thermally conductive film 1mm 4.5W/mK 210x147mm

Kerafol 86/450 is a technically advanced thermally conductive film produced by Kerafol, identified by the part number 1841876. This product, with dimensions of 210 mm by 147 mm and a thickness of 1 mm, delivers a thermal conductivity of 4.5 W/mK, making it highly effective for dissipating heat in electronic assemblies. Engineered as a gap-filling material, it is designed to interface between heat-generating components and heat sinks, ensuring efficient thermal transfer. Among its typical applications are high-performance electronic devices and heat management solutions in sectors such as telecommunications and automotive electronics. The Kerafol 86/450 is a reliable choice for engineers seeking to optimise thermal performance in complex systems.

Type	SOFTTHERM 86/450
Dispensing Method	Film
Compound Colour	Brown
Content	1
Dielectric Strength	10kV/mm
Dimensions	(L x W) 210 mm x 147 mm
Length	210mm
Material thickness	1mm
Max. temperature	+180°C
Maximum Temperature	+180°C
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Product Type	Thermally conductive film
Thermal Conductivity	4.5W/mK
Width	147mm
