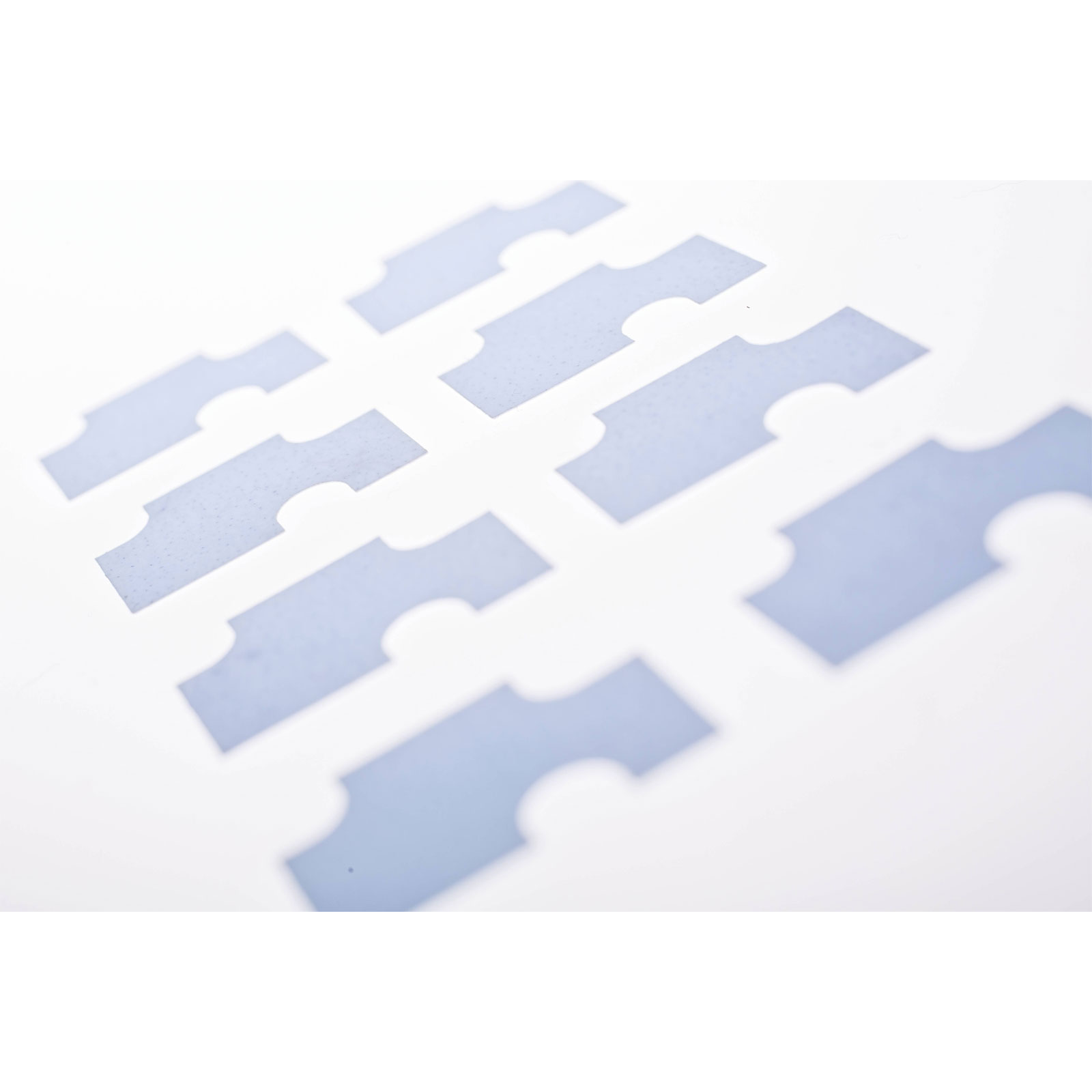

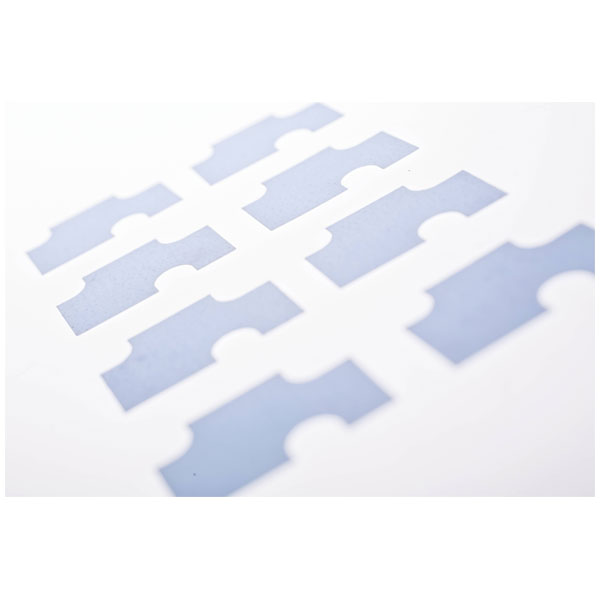

Kerafol 1.000U80.ST.00150.S001108 U80 Thermally conductive film silicone-free

Kerafol 1.000U80.ST.00150.S001108, also known under the alternative description 2756243, is a thermally conductive film designed to be silicone-free, addressing specific engineering requirements for heat management without silicone contamination. This film provides excellent thermal conductivity properties, essential for optimising thermal interface applications that demand efficient heat dissipation. Its strong performance characteristics are particularly beneficial in electronics cooling, where it serves as an effective medium to channel heat away from sensitive components, thereby enhancing reliability and performance. The material's flexibility and resilience make it suitable for use in a wide range of applications, including LED lighting systems, power electronics, and automotive electronics, where maintaining operational temperature and electronic stability is critical.

Type	Thermally conductive film
Dispensing Method	Paste
Compound Colour	Blue
Content	1
Dimensions	(L x W) 100 mm x 100 mm
Length	100mm
Material	Polyurethane
Material thickness	0.15mm
Max. temperature	+125°C
Maximum Temperature	+125°C
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Product Type	Thermally conductive film
Thermal Conductivity	1.8W/mK
Width	100mm
