Kemo S081 IR LED Set approx 10pcs

Kemo
Standard range
Order Code:

55-1564

Brand: Kemo MPN: S081 EAN-13: 4024028050836
Qty Was Unit Price (Ex VAT)
1+ £2.08   £1.12
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
413 in stock, despatched in 4 working days

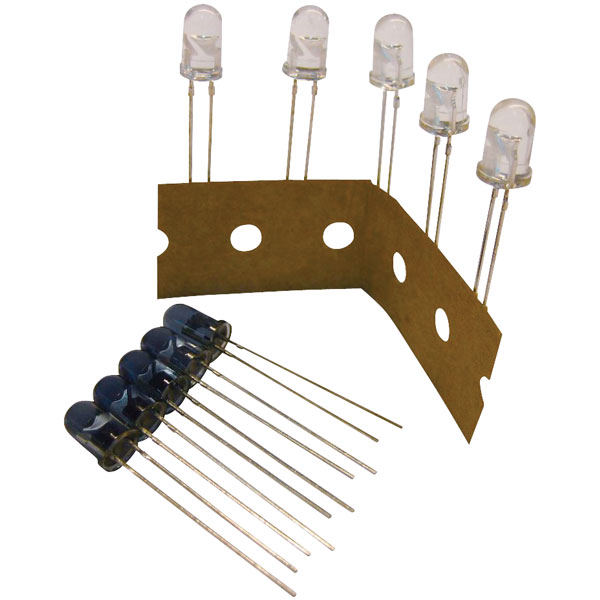

A set of 10x infrared LEDs, ideal for small test laboratory use and for education and experimentation.
  • 5x LEDs have clear lenses and 5x LEDs have blue diffused lenses
Dominant Wavelength 870 (x5) / 925 (x5)nm
Forward Current 100mA
Forward Voltage Typical 1.35V
LED Colour Infra-red
Lens Type Water clear (x 5) / blue diffused (x 5)
Luminous Intensity N/A
Max Operating Temp +85°C
Minimum Operating Temp -30°C
Reverse Voltage 5V
Size 5mm
Viewing Angle N/A

To use this facility please Sign In.

Sign In

Questions

*Question functionality currently disabled
Thursday, October 31, 2013 | Question by: Rapid Customer | Product code: 55-1564
Q. are these a matched pair
A. Hi Andrew. Thank you for your question. According to the available information these IR LEDs are both transmitters, the clear LEDs work at 870nm and the blue version at 925nm. A suitable matched pair would be 58-0446 and 58-0470.
