Kabeltronik 391800800 UL-LifYY Control Lead 8x0.08mm² Black 100m

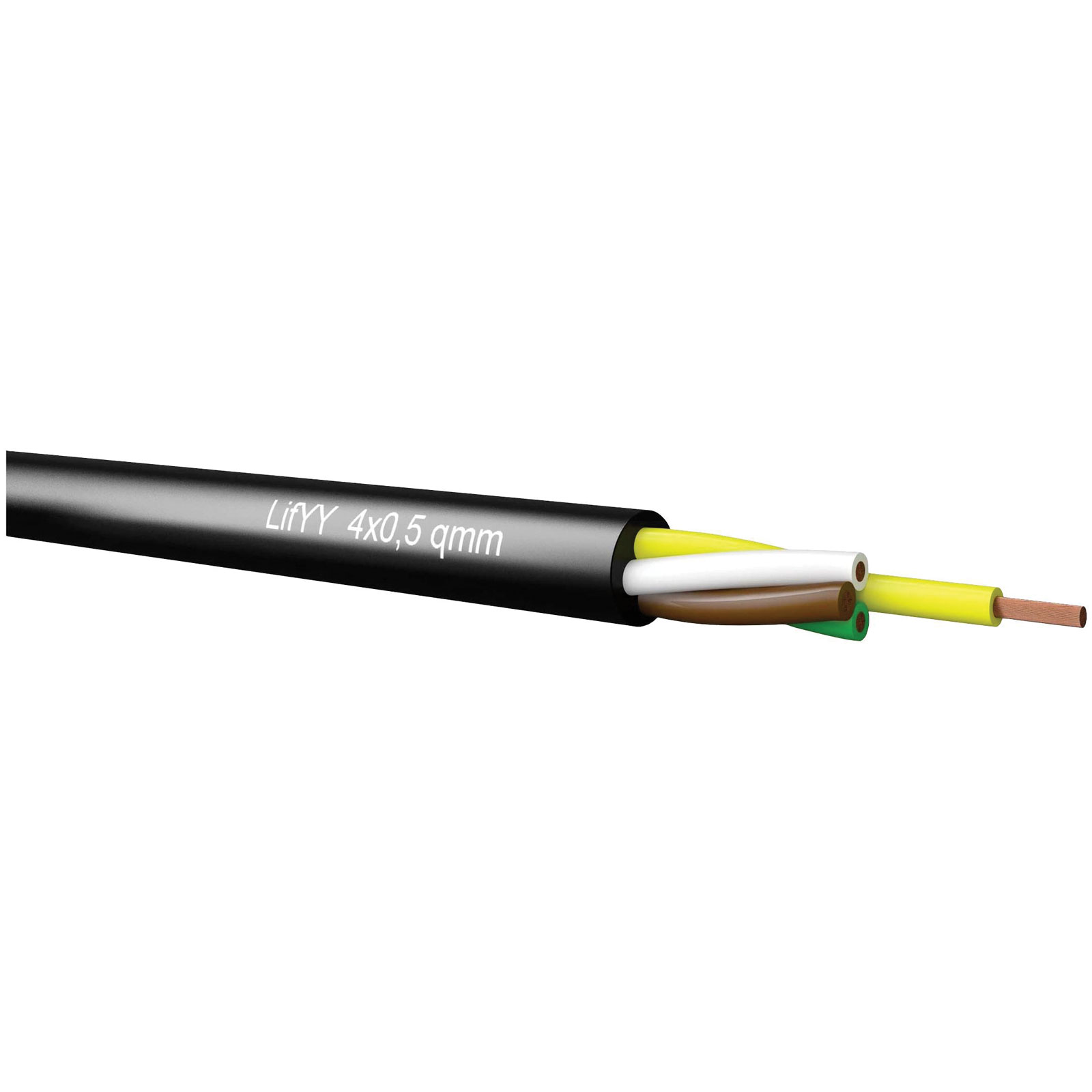

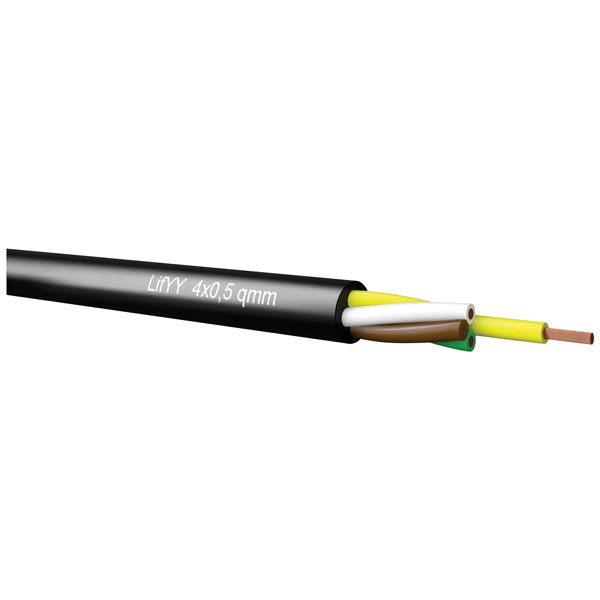

Image Representative of Range

Kabeltronik 391800800 UL-LifYY Control Lead 8x0.08mm² Black 100m

Kabeltronik
Extended range
Order Code:

04-5056

Brand: Kabeltronik MPN: 391800800
Qty Unit Price (Ex VAT)
1+ £182.56
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 3 weeks

Kabeltronik manufactures the 391800800 Control lead featuring 8 cores of 0.08 mm² each, available in a 100 m length. This black control lead is suitable for various electrical applications requiring precise signal transmission. It is commonly used in automation and control systems.
Type Control lead
AWG 28
Bend radius (no. of ODs for fixed installation) 10
Bend radius (no. of ODs for flexible installation) 10
Cable type UL-LifYY 2936
Certification marks UL, cUL
Core layout 44 x 0.05 mm
Cross section 8 x 0.08 mm²
Cross section (each core) 0.08mm²
Factory colour Black
Halogen-free No
Insulation PVC
Insulation material PVC
Manufacturer part # 391800800
Max. temperature range (fixed installation) +80°C
Max. temperature range (flexible installation) +80°C
Min. temperature range (fixed installation) -30°C
Min. temperature range (flexible installation) -10°C
Misc Attribute 391800800
No. of leads 8
Nominal voltage 150V
Outside Ø 3.90mm
RoHS-compliant Yes
Test voltage 1000V
