Kabeltronik 212071400-1 PURtronic High flex Control Lead 7x0.14mm² Grey

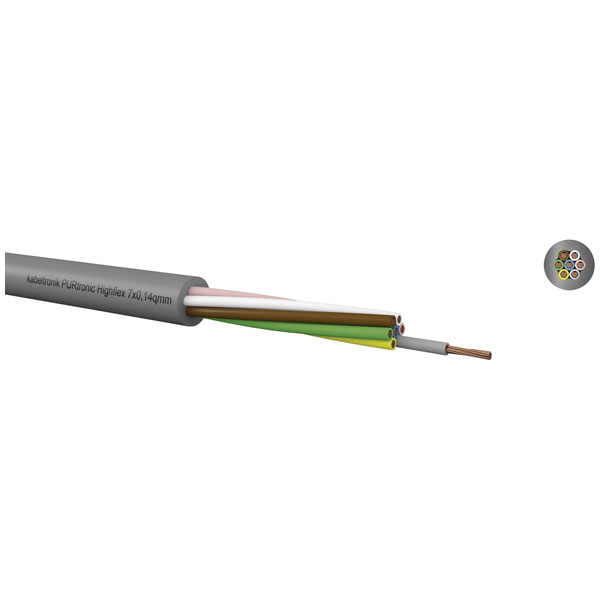

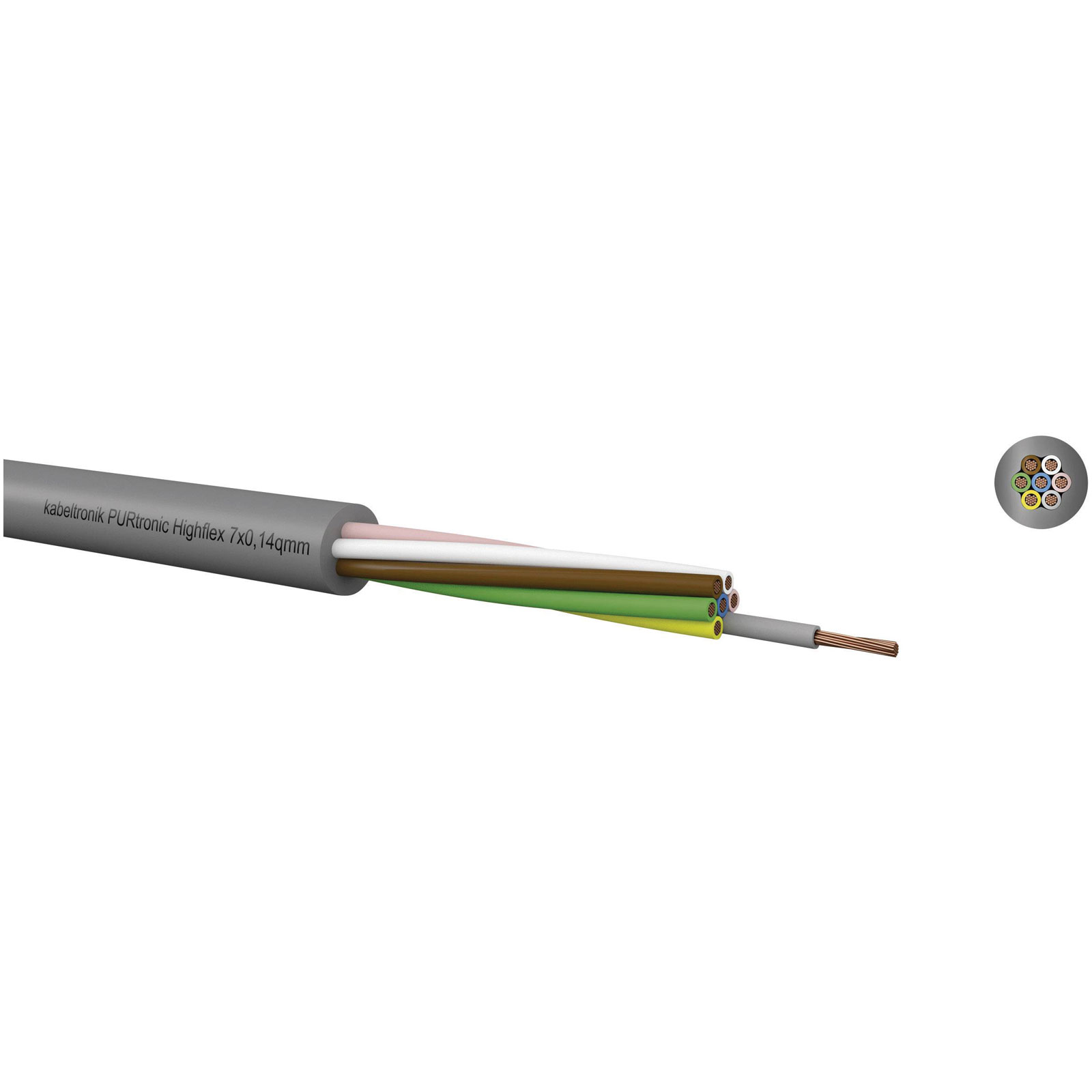

Image Representative of Range

Kabeltronik 212071400-1 PURtronic High flex Control Lead 7x0.14mm² Grey

Kabeltronik
Standard range
Order Code:

12-2040

Brand: Kabeltronik MPN: 212071400-1 EAN-13: 2050001708601
Qty Unit Price (Ex VAT)
1+ £2.13
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
132 in stock, despatched in 4 working days

The Kabeltronik PURtronic Highflex Control lead 7 x 0.14 mm², identified by the code 212071400-1, is manufactured by Kabeltronik. It features high flexibility and durability, making it suitable for demanding environments where control leads are required. Typical applications include industrial automation systems and machinery wiring.
Type Control lead
Bend radius (no. of ODs for fixed installation) 6
Bend radius (no. of ODs for flexible installation) 10
Cable type PURtronic Highflex
Core layout 18 x 0.10 mm
Cross section 7 x 0.14 mm²
Cross section (each core) 0.14mm²
Factory colour Grey
Halogen-free Yes
Insulation PUR
Insulation material Polyurethane
Material (details) Cu-strand, blk.
Max. length sold by the metre 100m
Max. temperature range (fixed installation) +80°C
Max. temperature range (flexible installation) +80°C
Min. temperature range (fixed installation) -40°C
Min. temperature range (flexible installation) +20°C
Misc Attribute 212071400
No. of leads 7
Nominal voltage 500V
Number-coded No
Outside Ø 3.80mm
Packaged No
Sold per metre Yes
Suited for cable carriers No
