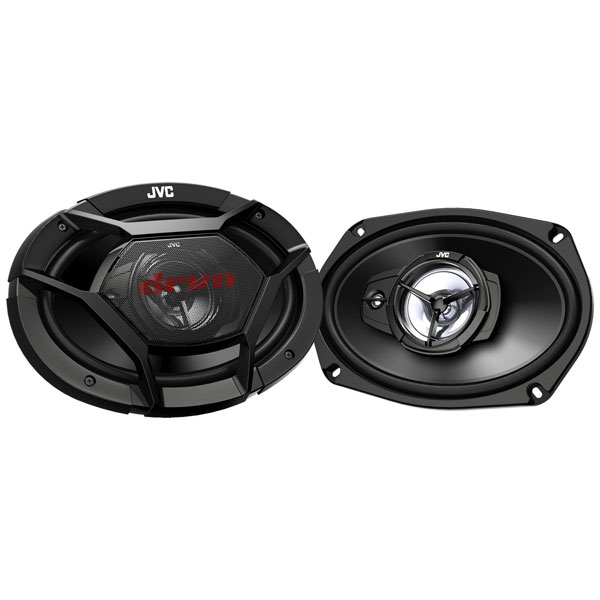

JVC CSDR6930 3-way triaxial flush mount speaker 500W 1 Pair Speakers

JVC CS-DR6930 is a pair of 3-way triaxial flush mount speakers designed for automotive audio systems, offering a robust power handling capacity of 500 watts. These car loudspeakers are engineered to deliver precise sound reproduction, featuring an advanced multi-layer mica cone design that ensures durability and clarity across a wide frequency range. The speakers are suitable for enhancing audio experiences in vehicles where space is a constraint yet high-quality acoustic performance is desired. Common engineering applications of the CS-DR6930 include integration into a variety of car models where they can replace or upgrade existing sound systems, providing clean installation thanks to their flush mount design.

Type	3-way triaxial flush mount speaker
Impedance	4O
Power - Rated	70 W
Amplifier included	No
Content	1
Dimensions	150 x 230 mm (6 x 9")
Driver diaphragm material	Polyetherimide (PEI)
Frequency Range	58 - 21,000Hz
Magnet weight	285 g
Mid-range driver diameter	6.6 cm
Midrange speaker magnet type	Ferrite
Mounting depth	7.9cm
Recess depth	79mm
Separate components	Yes
Shape	Oval
Sound pressure level (max)	88 dB
Speaker type	3-way
SPL	88dB
Subwoofer included	Yes
Subwoofer type	Passive subwoofer
Tweeter	Yes
Tweeter diameter	1.5 cm
Weight	1.07kg
Woofer magnet type	Ferrite
