JVC CSDR520 2-way coaxial flush mount speaker kit 260W 1 Pair Speakers

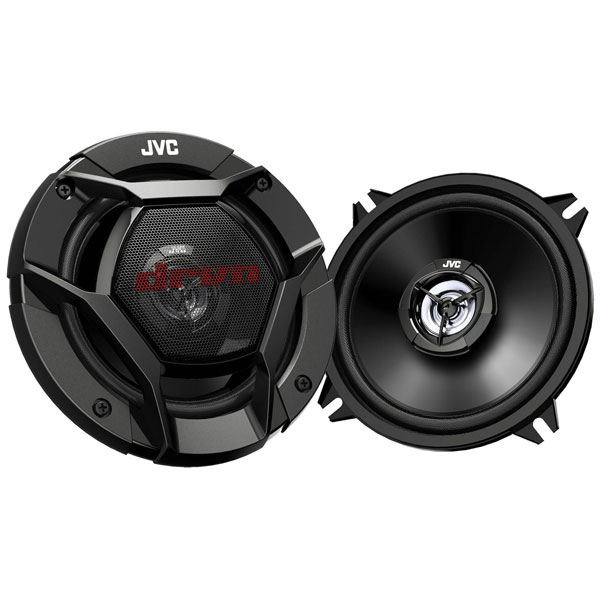

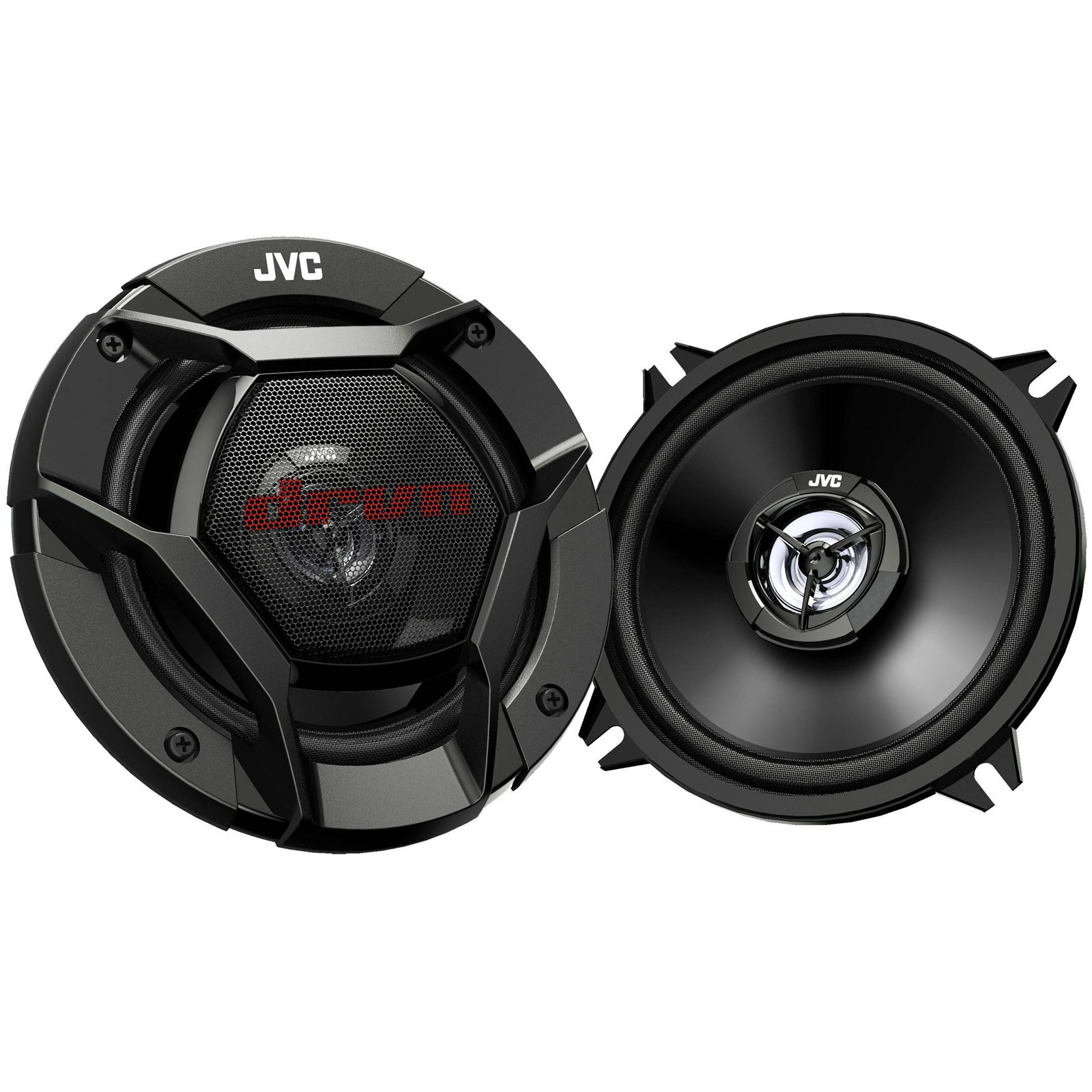

JVC CS-DR520 is a car speaker system identified by part number 00046838073359. This 2-way coaxial flush mount speaker kit delivers a robust output of 260 watts per pair, providing clear and dynamic sound reproduction suitable for automotive audio systems. Engineered with precision, the speakers are designed for ease of installation in a variety of vehicle interiors, optimising the efficiency of sound delivery without compromising on space. The CS-DR520 speakers are ideally used in upgrading or replacing factory-installed car audio systems, offering enhanced audio performance through the integration of a high-grade woofer and tweeter combination. This makes them an excellent choice for automotive engineers focused on in-car sound system enhancements and custom installations.

Type	2-way coaxial flush mount speaker kit
Impedance	4Ω
Power - Rated	40 W
Amplifier included	No
Content	1
Driver diaphragm material	Polyetherimide (PEI)
Frequency Range	85 - 25,000Hz
Magnet weight	153 g
Mounting depth	4.45cm
Recess depth	44.5mm
Separate components	Yes
Shape	Round
Size	130mm
Sound pressure level (max)	88 dB
Speaker type	2-way
SPL	88dB
Subwoofer included	Yes
Subwoofer type	Passive subwoofer
Tweeter	Yes
Tweeter diameter	2.5 cm
Tweeter magnet type	Neodymium
Weight	510g
Woofer diameter	13 cm
Woofer magnet type	Ferrite
