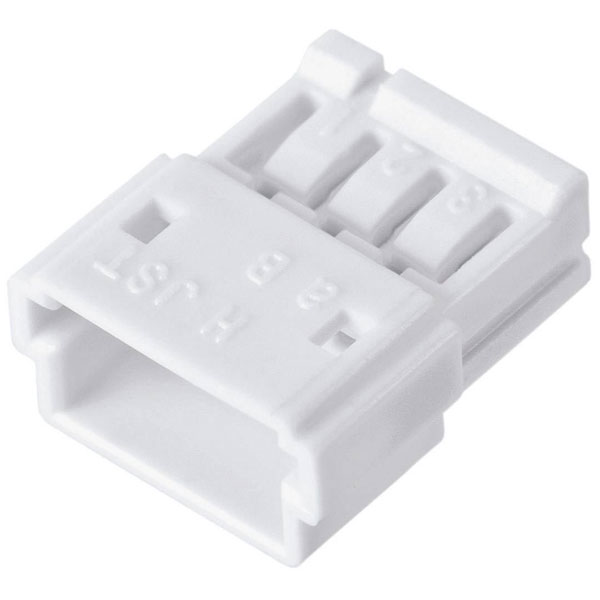

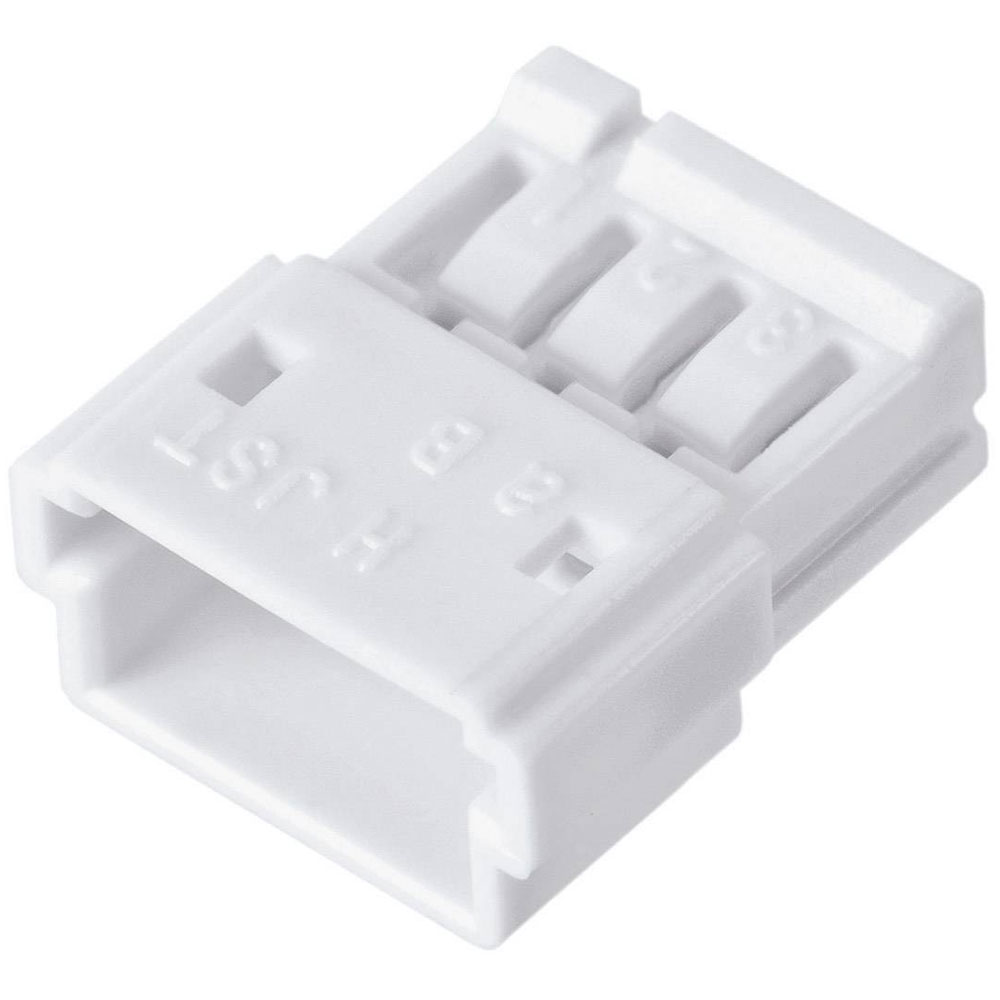

JST ZMR-3 ZM Pin Housing Cable 3 Pins 1.50mm Spacing Click Latch

JST
Order Code:

04-4982

Brand: JST MPN: ZMR-3 EAN-13: 2050001028877
Qty Unit Price (Ex VAT)
50+ £0.140
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
884 available to back orderBack-order availability date - 09/01/2026

The JST Pin housing cable ZMR-3 features a total of 3 pins with a contact spacing of 1.50 mm. Manufactured by JST, this product is designed for precise and reliable electrical connections. It is typically used in electronic and automotive applications requiring secure and compact wiring solutions.
Type Pin housing cable
Number of Ways 3
Number of Rows 1
Colour Ecru
Case Material Polyamide
Compatible with (details) JST socket housing ZR
Connection Crimp
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-wire
Connector Type Socket, straight
Cross Section 0.05 - 0.08mm²
CS 1.50mm
Dimensions (L x W x H) 7.0 x 3.6 x 8.1 mm
Height 8.1mm
Industrial packaging No
Insulation Material Polyamide
Length 7.0mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Housing for pin contacts
Nominal Current 0.70A
Nominal current - rounded value 700mA
Nominal current (details) 0.7A
Nominal voltage (details) 50V AC
Pins per row 3
Series ZM
Width 3.6mm
