JST S8B-PH-K-S (LF)(SN) PH Pin Strip 8 Pins 2mm Spacing Pre-Tinned

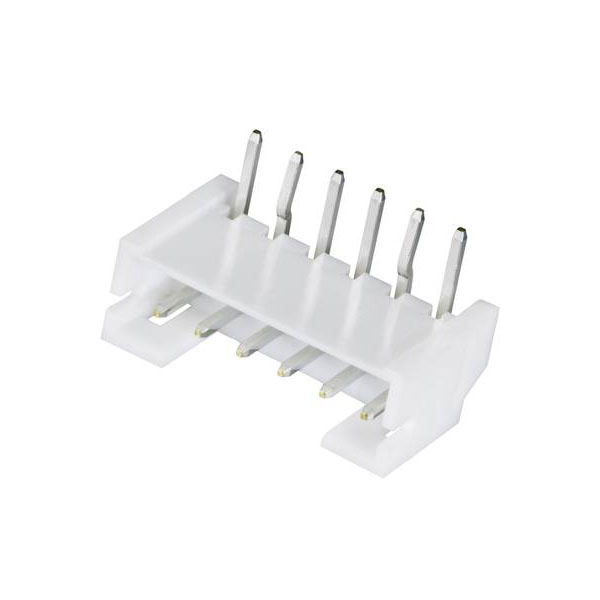

Image Representative of Range

JST S8B-PH-K-S (LF)(SN) PH Pin Strip 8 Pins 2mm Spacing Pre-Tinned

JST
Order Code:

04-4942

Brand: JST MPN: S8B-PH-K-S (LF)(SN) EAN-13: 2050000918612
Qty Unit Price (Ex VAT)
10+ £0.434
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,113 in stock, despatched in 4 working days

The JST built-in pin strip is an angled connector strip with 8 pins and 2 mm contact spacing, measuring 17.9x4.5x9.4 mm. It is manufactured by J.S.T. and is commonly used for PCB connections in various electronic components. This product is suitable for reliable electrical connections in compact electronic applications.
Type Built-in pin strip (standard)
Number of Rows 1
Board contact surface Tin plated
Case Material Polyamide
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector Type Pin strip, right angle
Contact Material Phosphor bronze
Cross Section 0.05 - 22mm²
CS 2mm
Dim (L x W x H) 17.9 x 4.5 x 9.4 mm
Factory colour Ecru
Height 9.4mm
Industrial packaging No
Insulation Material Polyamide
Length 17.9mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 2A
Nominal current - rounded value 2A
Nominal current (details) 2A
Nominal voltage (details) voltage:100V AC
Pin Ø 0.5mm
Pin shape Square
Pins 8
Pins per row 8
Series PH
Total number of pins 8
Width 4.5mm
