JST S6B-ZR (LF)(SN) Pin Strip 6 Pins 1.5mm Spacing Detachable Connection

JST
Order Code:

04-4941

Brand: JST MPN: S6B-ZR (LF)(SN) EAN-13: 2050000918278
Qty Unit Price (Ex VAT)
10+ £0.496
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
344 in stock, despatched in 4 working days

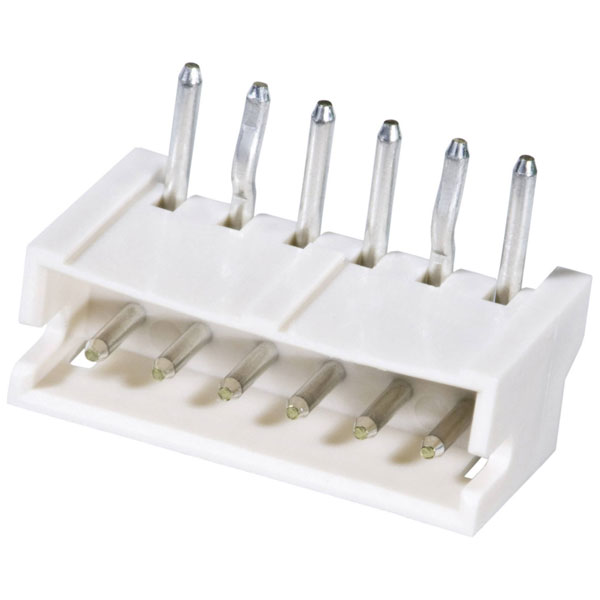

The JST built-in pin strip, precision ZH, features six angled pins with a 1.50 mm contact spacing, ideal for compact PCB connections. Manufactured by JST, it measures 10.5x3.5x7.2mm, making it suitable for tight spaces in electronic assemblies. This connector is commonly used in components and PCB connector applications.
Type Built-in pin strip (precision)
Number of Rows 1
Board contact surface Tin plated
Case Material Polyamide
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector Type Pin strip, right angle
Contact Material Phosphor bronze
Cross Section 0.032 - 0.13mm²
CS 1.50mm
Dim (L x W x H) 10.5 x 3.5 x 6.4 mm
Factory colour Ecru
Height 6.4mm
Industrial packaging No
Insulation Material Polyamide
Length 10.5mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 1A
Nominal current - rounded value 1A
Nominal current (details) 1A
Nominal voltage (details) 50V AC
Pin Ø 0.5mm
Pin shape Circular
Pins 6
Pins per row 6
Series ZH
Total number of pins 6
Width 3.5mm
