JST S6B-PH-K-S (LF)(SN) PH Pin Strip 6 Pins 2mm Reverse Voltage Protection

JST
Extended range
Order Code:

04-4939

Brand: JST MPN: S6B-PH-K-S (LF)(SN)
Qty Unit Price (Ex VAT)
1+ £0.260
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 14 days

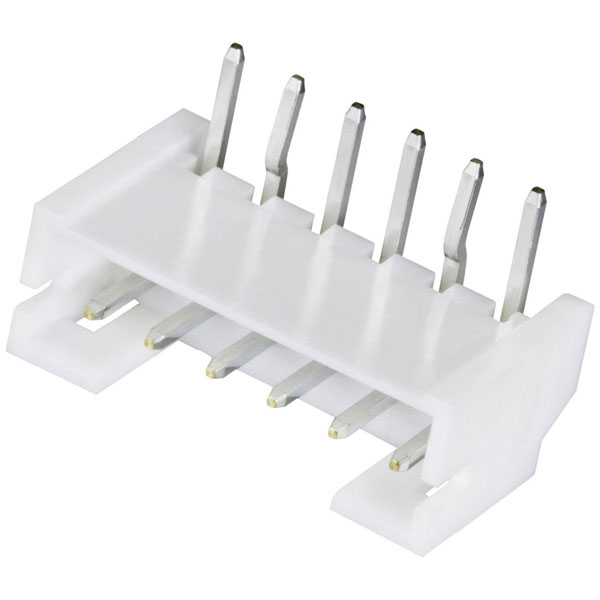

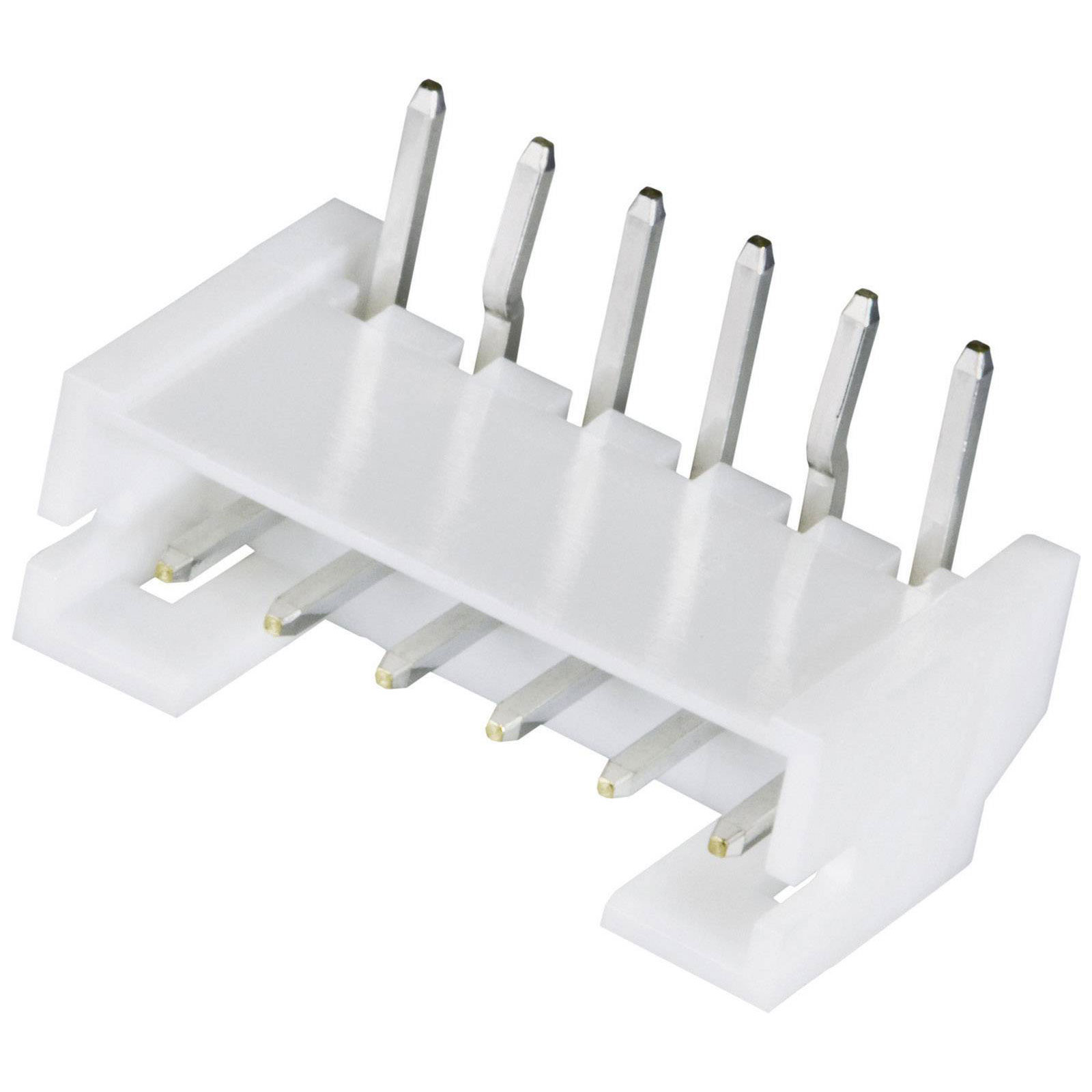

The JST built-in pin strip S6B-PH-K-S (LF)(SN) features six pins with a contact spacing of 2 mm. This connector strip is angled, with dimensions of 13.9 mm x 4.5 mm x 9.4 mm, making it suitable for compact electronic applications. It is typically used in printed circuit board (PCB) connections across various electronic components.
No. of rows 1
Board contact surface Tin plated
Case material Polyamide
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector type Pin strip, right angle
Contact material Phosphor bronze
Cross section 0.05 - 22mm²
CS 2mm
Dim (L x W x H) 13.9 x 4.5 x 9.4 mm
Factory colour Ecru
Height 9.4mm
Industrial packaging No
Insulation material Polyamide
Length 13.9mm
Manufacturer part # S6B-PH-K-S (LF)(SN)
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Misc Attribute 2 S6B-PH-K-S (LF)(SN)
Nominal current 2A
Nominal current - rounded value 2A
Nominal current (details) 2A
Nominal voltage (details) voltage:100V AC
Pin Ø 0.5mm
Pin shape Square
Pins 6
Pins per row 6
RoHS-compliant Yes
Series PH
Total number of pins 6
Type Built-in pin strip (standard)
Width 4.5mm
