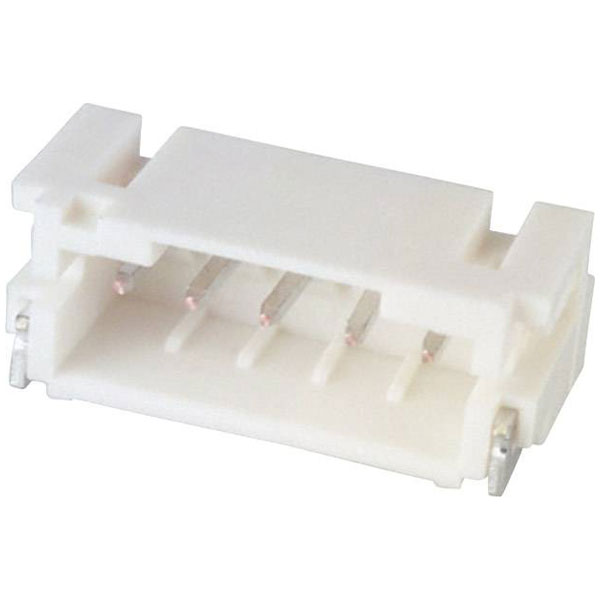

JST S5B-PH-SM4-TB (LF)(SN) Built-in Pin Strip 5 Pins 2mm Spacing Pre-tin Coated

JST
Standard range
Order Code:

04-4937

Brand: JST MPN: S5B-PH-SM4-TB (LF)(SN)
Qty Unit Price (Ex VAT)
1+ £0.600
50+ £0.540
100+ £0.500
250+ £0.460
500+ £0.420
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
838 in stock, despatched in 4 working days

The JST built-in pin strip (standard) features five pins with a contact spacing of 2 mm, known also by the part number S5B-PH-SM4-TB (LF)(SN). This compact and reliable connector, manufactured by JST, is ideal for use in small electronic devices and circuit boards. Such connectors are often found in consumer electronics and communication equipment.
No. of rows 1
Board contact surface Tin plated
Case material Polyamide
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector type Pin strip, right angle
Contact material Phosphor bronze
Cross section 0.05 - 22mm²
CS 2mm
Dim (L x W x H) 11.9 x 5 x 9.4 mm
Factory colour Ecru
Height 9.4mm
Industrial packaging No
Insulation material Polyamide
Length 11.9mm
Manufacturer part # S5B-PH-SM4-TB (LF)(SN)
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Misc Attribute 2 S5B-PH-SM4-TB (LF)(SN)
Nominal current 2A
Nominal current - rounded value 2A
Nominal current (details) 2A
Nominal voltage (details) voltage:100V AC
Pin Ø 0.5mm
Pin shape Square
Pins per row 5
RoHS-compliant Yes
Series PH
Total number of pins 5
Type Built-in pin strip (standard)
Width 5mm
