JST S4B-PH-K-S (LF)(SN) PH Pin Strip 4-Pin 2mm Spacing Detachable Audio Click

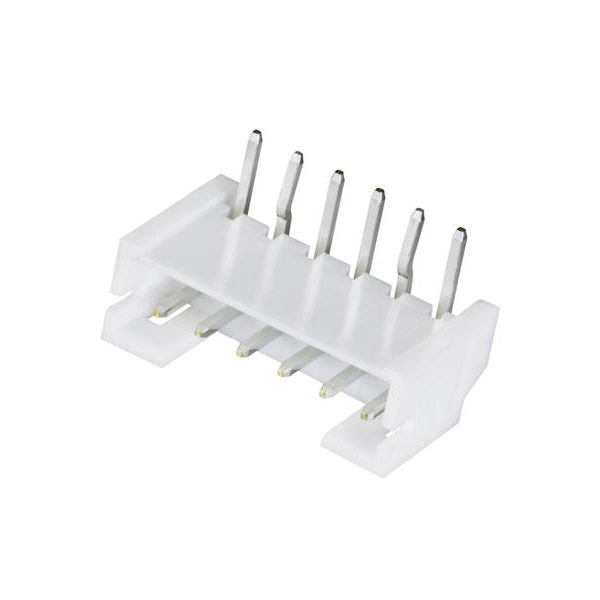

Image Representative of Range

JST S4B-PH-K-S (LF)(SN) PH Pin Strip 4-Pin 2mm Spacing Detachable Audio Click

JST
Order Code:

04-4932

Brand: JST MPN: S4B-PH-K-S (LF)(SN) EAN-13: 2050000918575
Qty Unit Price (Ex VAT)
20+ £0.220
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
335 in stock, despatched in 4 working days

JST manufactures the S4B-PH-K-S (LF)(SN), a built-in pin strip with four pins and a 2 mm contact spacing. It features an angled design with dimensions of 9.9x4.5x9.4mm, making it suitable for compact electronic assemblies. Typical applications include use in printed circuit boards for connecting components effectively.
Type Built-in pin strip (standard)
Number of Positions 4
Number of Rows 1
Board contact surface Tin plated
Case Material Polyamide
Colour Ecru
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector Type Pin strip, right angle
Contact Material Phosphor bronze
Cross Section 2mm
Dimensions (L x W x H) 9.9 x 4.5 x 9.4 mm
Height 9.4mm
Industrial packaging No
Insulation Material Polyamide
Length 9.9mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 2A
Nominal Voltage voltage:100V AC
Pin Ø 0.5mm
Pin shape Square
Pins per row 4
Series PH
Width 4.5mm
