JST S3B-ZR (LF)(SN) Built-in Pin Strip ZH 3 Pins 1.50mm Easily Soldered

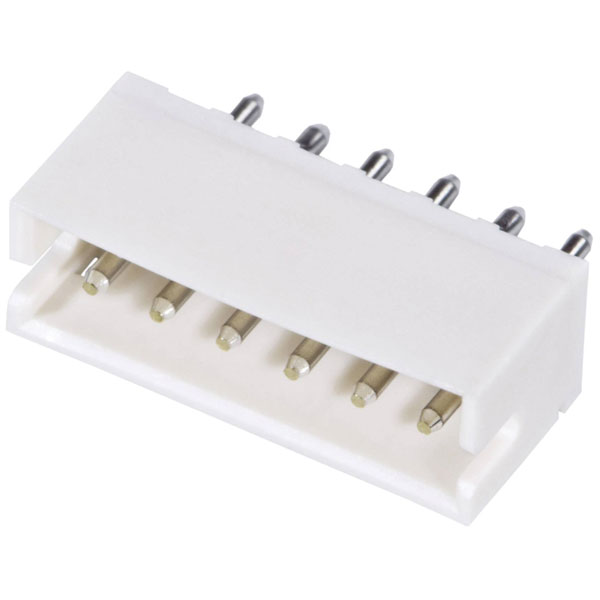

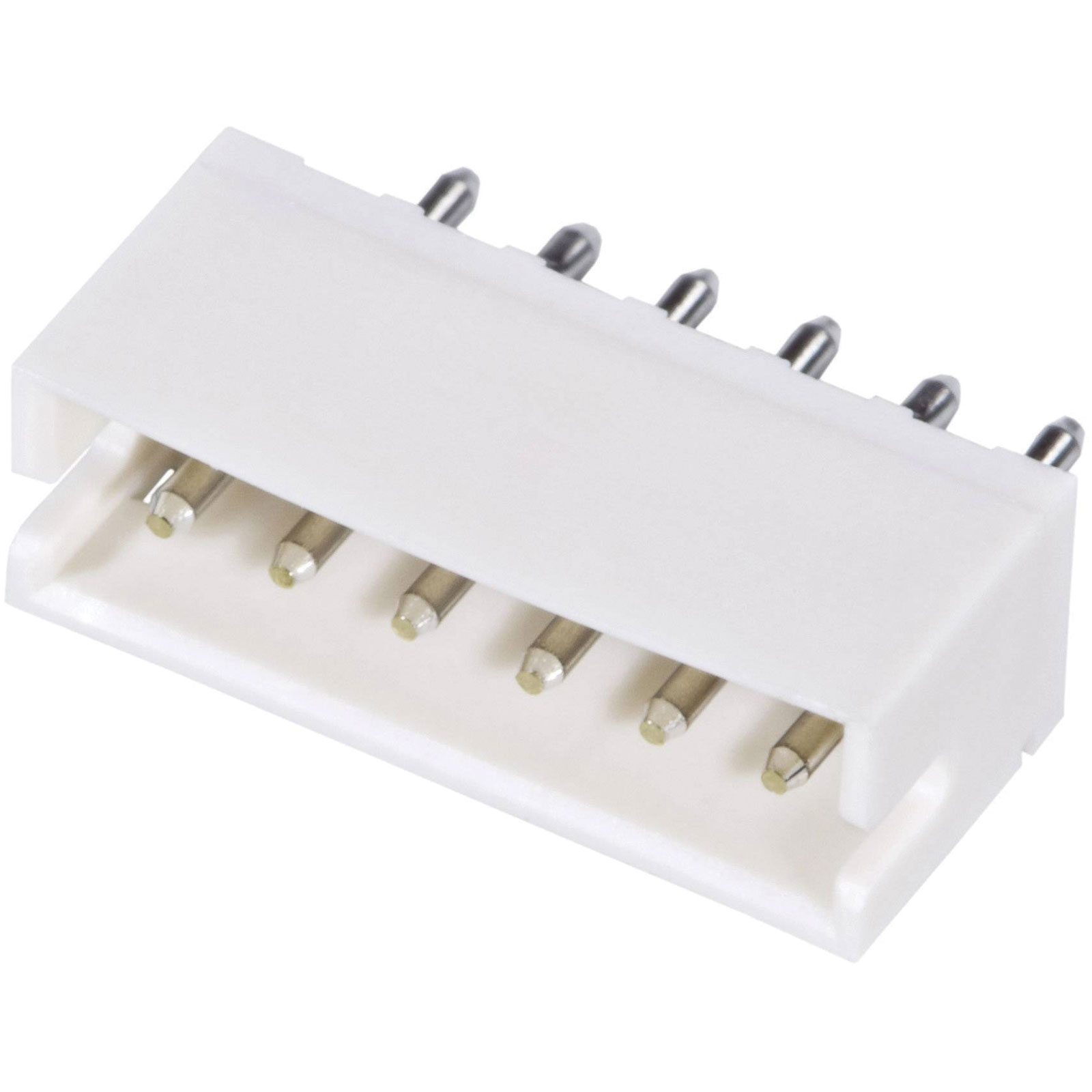

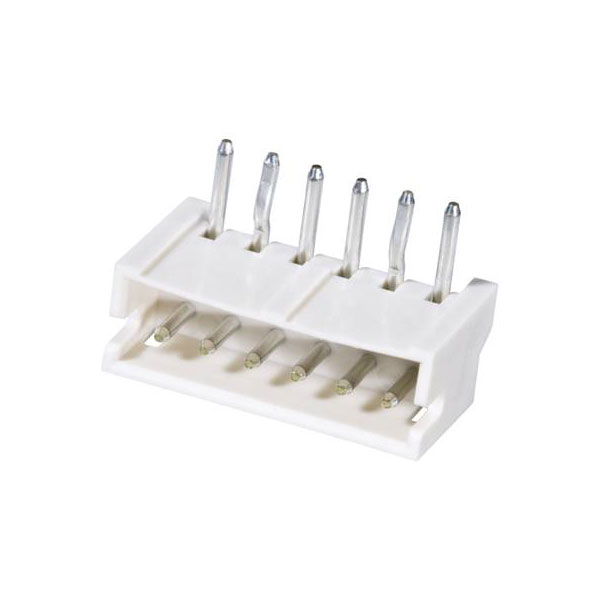

Image Representative of Range

JST S3B-ZR (LF)(SN) Built-in Pin Strip ZH 3 Pins 1.50mm Easily Soldered

JST
Standard range
Order Code:

04-4930

Brand: JST MPN: S3B-ZR (LF)(SN)
Qty Unit Price (Ex VAT)
1+ £0.279
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
33 in stock, despatched in 4 working days

The JST built-in pin strip is a precision connector with 3 pins and a contact spacing of 1.50 mm. It features a compact design with dimensions 6x3.5x7.2 mm, making it ideal for tight spaces. This connector is typically used in printed circuit board (PCB) applications where secure and angled connections are required.
No. of rows 1
Board contact surface Tin plated
Case material Polyamide
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector type Pin strip, right angle
Contact material Phosphor bronze
Cross section 0.032 - 0.13mm²
CS 1.50mm
Dim (L x W x H) 6 x 3.5 x 6.4 mm
Factory colour Ecru
Height 6.4mm
Industrial packaging No
Insulation material Polyamide
Length 6mm
Manufacturer part # S3B-ZR (LF)(SN)
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Misc Attribute 2 S3B-ZR (LF)(SN)
Nominal current 1A
Nominal current - rounded value 1A
Nominal current (details) 1A
Nominal voltage (details) 50V AC
Pin Ø 0.5mm
Pin shape Circular
Pins 3
Pins per row 3
RoHS-compliant Yes
Series ZH
Total number of pins 3
Type Built-in pin strip (precision)
Width 3.5mm
