JST S3B-PH-SM4-TB (LF)(SN) PH Pin Strip 3 Pins 2mm Space Audible Click

JST
Order Code:

04-4929

Brand: JST MPN: S3B-PH-SM4-TB (LF)(SN) EAN-13: 2050002362505
Qty Unit Price (Ex VAT)
10+ £0.537
125+ £0.476
500+ £0.430
2500+ £0.380
5000+ £0.344
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,130 in stock, despatched in 4 working days

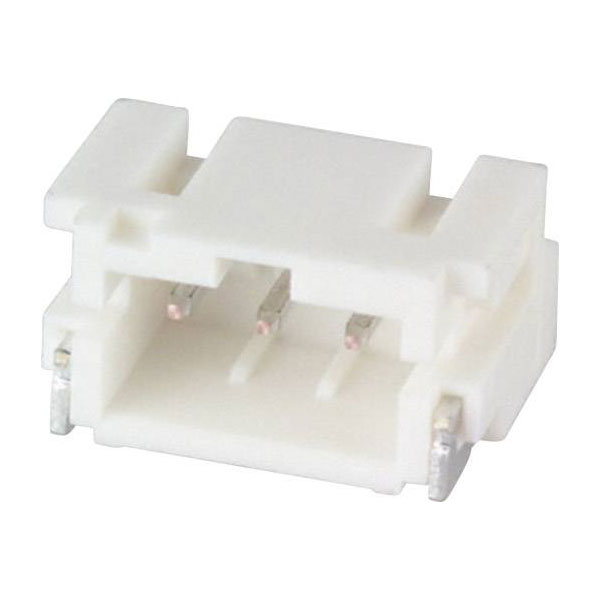

JST manufactures the S3B-PH-SM4-TB (LF)(SN), a built-in pin strip part of the PH series featuring three pins and a contact spacing of 2 mm. This component is typically used in compact and lightweight electronic devices requiring reliable connections. It is ideal for use in consumer electronics, automotive applications, and various industrial equipment.
Type Built-in pin strip (standard)
Number of Rows 1
Board contact surface Tin plated
Case Material Polyamide
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector Type Pin strip, right angle
Contact Material Phosphor bronze
Cross Section 0.05 - 22mm²
CS 2mm
Dim (L x W x H) 7.9 x 5 x 9.4 mm
Factory colour Ecru
Height 9.4mm
Industrial packaging No
Insulation Material Polyamide
Length 7.9mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 2A
Nominal current - rounded value 2A
Nominal current (details) 2A
Nominal voltage (details) voltage:100V AC
Pin Ø 0.5mm
Pin shape Square
Pins per row 3
Series PH
Total number of pins 3
Width 5mm
