JST S3B-PH-K-S (LF)(SN) Connector 3-Pin 2mm Spacing Pre-tin Coated

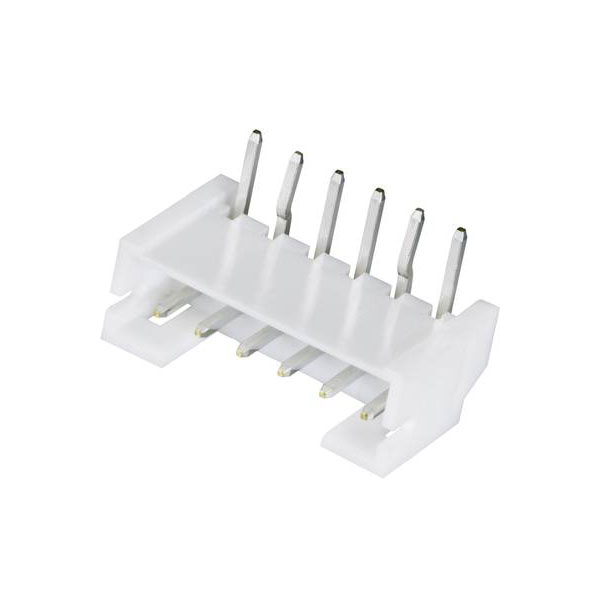

Image Representative of Range

JST S3B-PH-K-S (LF)(SN) Connector 3-Pin 2mm Spacing Pre-tin Coated

JST
Order Code:

04-4928

Brand: JST MPN: S3B-PH-K-S (LF)(SN) EAN-13: 2050000918568
Qty Unit Price (Ex VAT)
25+ £0.184
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
345 in stock, despatched in 4 working days

JST manufactures the S3B-PH-K-S (LF)(SN), a connector strip with three pins and a 2 mm contact spacing. This angled 3-way header, measuring 7.9 x 4.5 x 9.4 mm, is ideal for PCB applications. It is commonly used in electronic components and PCB connectors.
Type Built-in pin strip (standard)
Number of Positions 3
Number of Rows 1
Board contact surface Tin plated
Case Material Polyamide
Colour Ecru
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector Type Pin strip, right angle
Contact Material Phosphor bronze
Cross Section 2mm
Dimensions (L x W x H) 7.9 x 4.5 x 9.4 mm
Height 9.4mm
Industrial packaging No
Insulation Material Polyamide
Length 7.9mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 2A
Nominal Voltage voltage:100V AC
Pin Ø 0.5mm
Pin shape Square
Pins per row 3
Series PH
Width 4.5mm
