JST S12B-PHDSS (LF)(SN) PHD Pin Strip 12-Pin 2-Row 2mm Pitch Detachable PCB

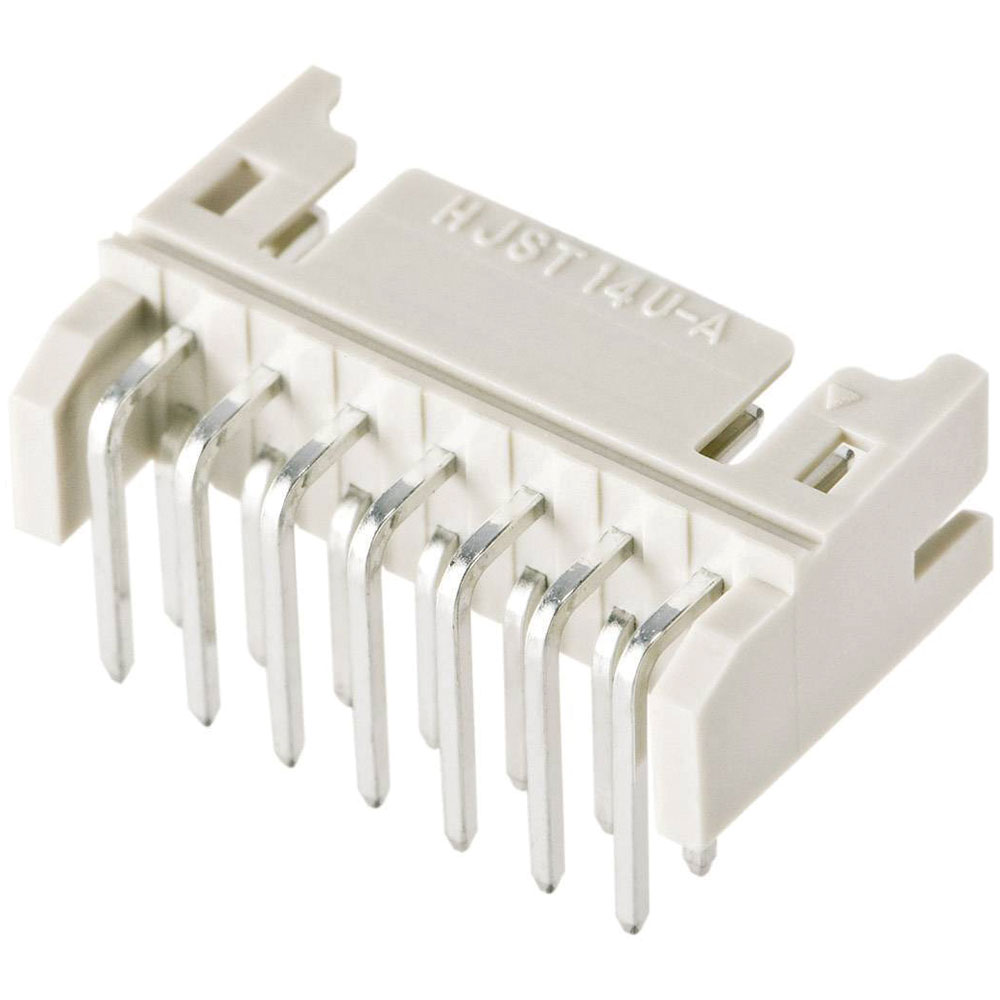

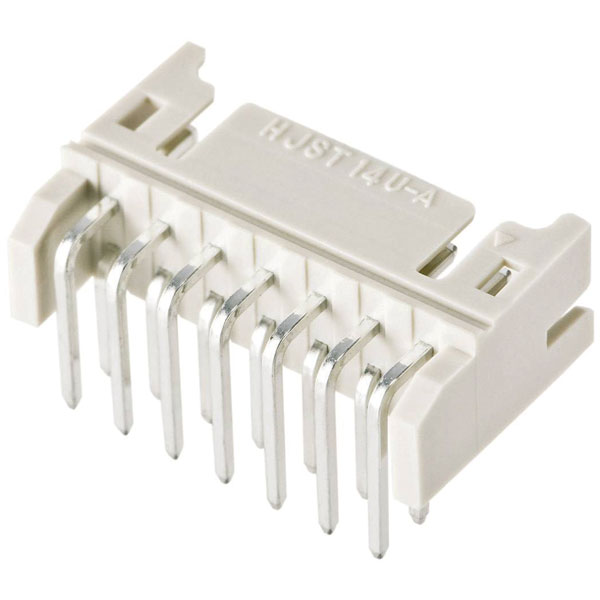

Image Representative of Range

JST S12B-PHDSS (LF)(SN) PHD Pin Strip 12-Pin 2-Row 2mm Pitch Detachable PCB

JST
Standard range
Order Code:

04-4922

Brand: JST MPN: S12B-PHDSS (LF)(SN)
Qty Unit Price (Ex VAT)
1+ £0.574
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
97 in stock, despatched in 4 working days

The JST built-in pin strip (precision) S12B-PHDSS (LF)(SN) features 12 pins with a contact spacing of 2 mm. Known for its precision, this component is commonly used in electronic assemblies for secure and reliable connections. Manufacturers like JST ensure quality for use in critical applications such as automotive and consumer electronics.
No. of rows 2
Board contact surface Tin plated
Case material Polyamide
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector type Pin strip, right angle
Contact material Copper alloy
Cross section 0.08 - 0.33mm²
CS 2mm
Dim (L x W x H) 13.9 x 5 x 8 mm
Factory colour Ecru
Height 8mm
Industrial packaging No
Insulation material Polyamide
Length 13.9mm
Manufacturer part # S12B-PHDSS (LF)(SN)
Material (details) PA 66 UL94V-0
Misc Attribute S12B-PHDSS (LF)(SN)
Nominal current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal voltage (details) 250V AC
Pin Ø 0.5mm
Pin shape Square
Pins per row 6
RoHS-compliant Yes
Series PHD
Total number of pins 12
Type Built-in pin strip (precision)
Width 5mm
