JST S10B-PH-K-S (LF)(SN) PH Pin Strip 10 Pins 2mm Spacing Pre-tinned

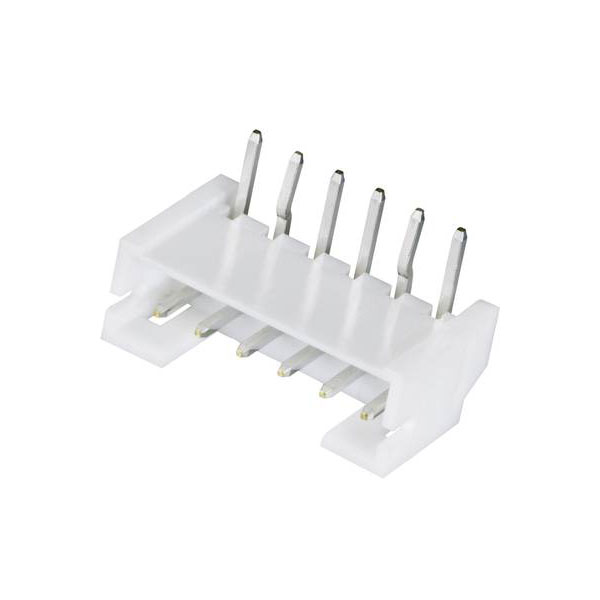

Image Representative of Range

JST S10B-PH-K-S (LF)(SN) PH Pin Strip 10 Pins 2mm Spacing Pre-tinned

JST
Order Code:

04-4920

Brand: JST MPN: S10B-PH-K-S (LF)(SN) EAN-13: 2050000918636
Qty Unit Price (Ex VAT)
10+ £0.512
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
61 in stock, despatched in 4 working days

JST manufactures the angled header connector strip with 10 pins, designed for a contact spacing of 2 mm. The compact dimensions of the part, measuring 21.9x4.5x9.4 mm, make it suitable for PCB applications. Typically used in electronic components and connectors, this component facilitates efficient electrical connections within circuits.
Type Built-in pin strip (standard)
Number of Rows 1
Board contact surface Tin plated
Case Material Polyamide
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector Type Pin strip, right angle
Contact Material Phosphor bronze
Cross Section 0.05 - 22mm²
CS 2mm
Dim (L x W x H) 21.9 x 4.5 x 9.4 mm
Factory colour Ecru
Height 9.4mm
Industrial packaging No
Insulation Material Polyamide
Length 21.9mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 2A
Nominal current - rounded value 2A
Nominal current (details) 2A
Nominal voltage (details) voltage:100V AC
Pin Ø 0.5mm
Pin shape Square
Pins 10
Pins per row 10
Series PH
Total number of pins 10
Width 4.5mm
