JST PHR-4 Socket 4-Pin 2mm Spacing Audible Click Detachable

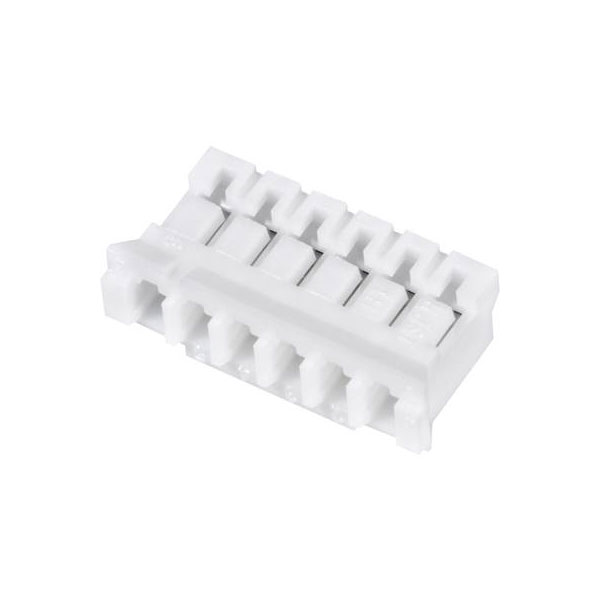

Image Representative of Range

JST PHR-4 Socket 4-Pin 2mm Spacing Audible Click Detachable

JST
Order Code:

04-4909

Brand: JST MPN: PHR-4 EAN-13: 2050000918353
Qty Unit Price (Ex VAT)
100+ £0.062
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,215 in stock, despatched in 4 working days

The JST socket housing PHR-4 by J.S.T. features a total of 4 pins with a contact spacing of 2 mm. It measures 9.8x4.5x6.4mm and is used for securing cable connections in electronic applications. Typically, it is employed in PCB connectors to ensure stable and reliable connectivity in various electronic devices.
Case Material Polyamide
Connection Crimp
Connector contact surface Tin plated
Connector system wire-to-board
Connector Type Socket, straight
Contact Material Copper alloy
Cross Section 0.05 - 22mm²
CS 2mm
Dim (L x W x H) 9.8 x 9.8 x 9.4 mm
Factory colour Ecru
Height 9.4mm
Industrial packaging No
Insulation Material Polyamide
Length 9.8mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 2A
Nominal current - rounded value 2A
Nominal current (details) 2A
Nominal voltage (details) voltage:100V AC
Number of Rows 1
Pins 4
Pins per row 4
Series PHR
Total number of pins 4
Type Socket housing cable
Width 9.8mm
