JST B8B-PH-K-S (LF)(SN) PH Pin Strip 8-Pin 2mm Spacing Solder-Friedly

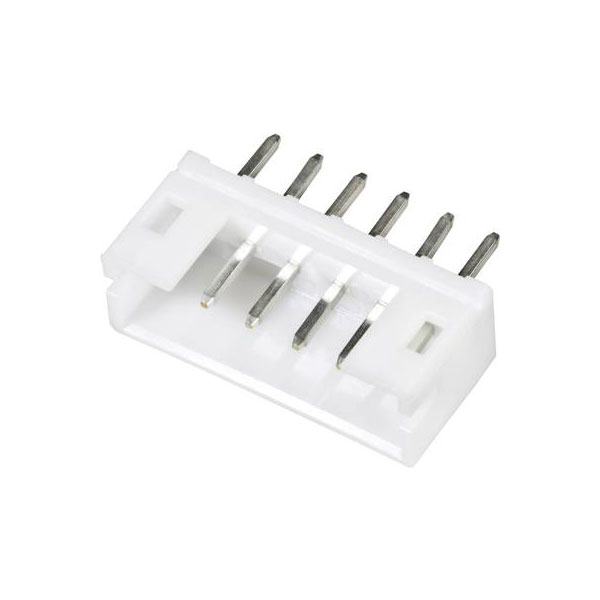

Image Representative of Range

JST B8B-PH-K-S (LF)(SN) PH Pin Strip 8-Pin 2mm Spacing Solder-Friedly

JST
Order Code:

04-4888

Brand: JST MPN: B8B-PH-K-S (LF)(SN) EAN-13: 2050000918513
Qty Unit Price (Ex VAT)
20+ £0.250
125+ £0.248
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
74 in stock, despatched in 4 working days

The JST B8B-PH-K-S (LF)(SN) is a built-in pin strip connector with 8 pins and a contact spacing of 2 mm. Its dimensions are 17.9x4.5x9.4 mm, making it suitable for compact PCB connector applications. This connector is typically used in electronic assemblies where reliable connections and space efficiency are crucial.
Type Built-in pin strip (standard)
Number of Rows 1
Board contact surface Tin plated
Case Material Polyamide
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector Type Pin strip, straight
Contact Material Phosphor bronze
Cross Section 0.05 - 22mm²
CS 2mm
Dim (L x W x H) 17.9 x 4.5 x 9.4 mm
Factory colour Ecru
Height 9.4mm
Industrial packaging No
Insulation Material Polyamide
Length 17.9mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 2A
Nominal current - rounded value 2A
Nominal current (details) 2A
Nominal voltage (details) voltage:100V AC
Pin Ø 0.5mm
Pin shape Square
Pins 8
Pins per row 8
Series PH
Total number of pins 8
Width 4.5mm
