JST B7B-PH-K-S (LF)(SN) PH Pin Strip 7 Pins 2mm Spacing Pre-tin Coating

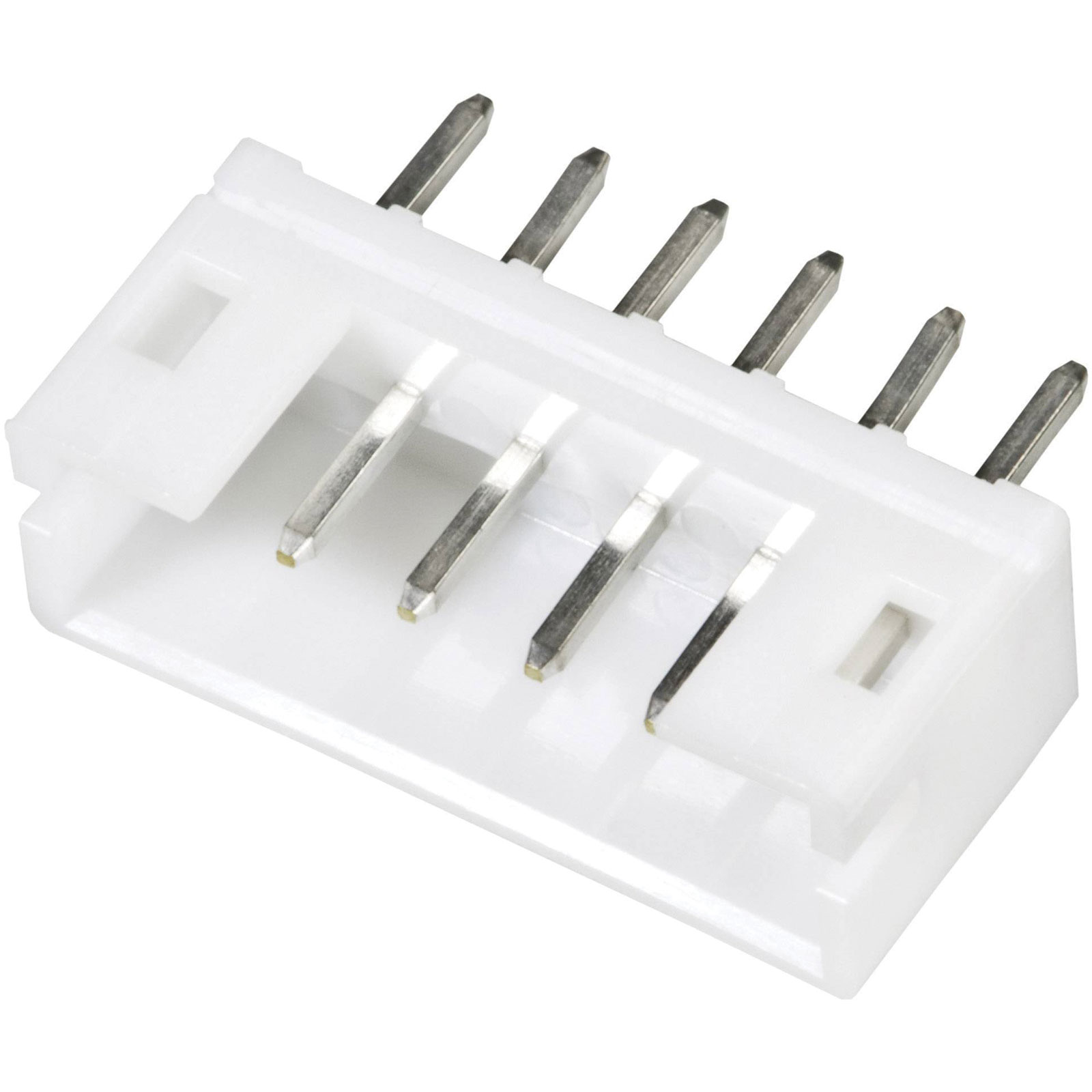

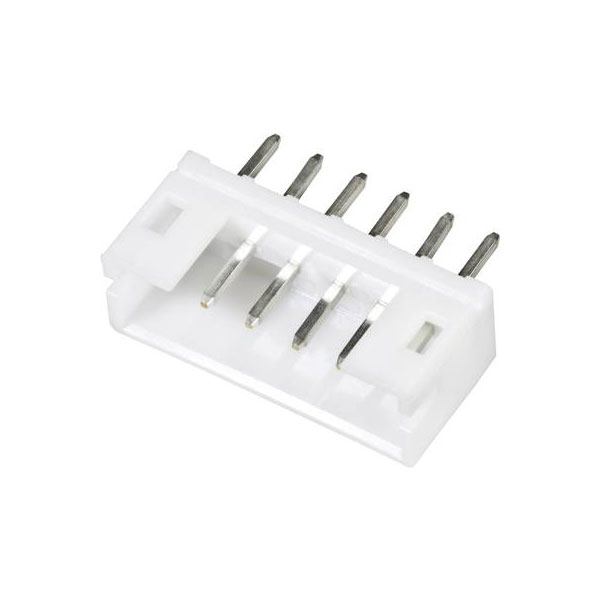

Image Representative of Range

JST B7B-PH-K-S (LF)(SN) PH Pin Strip 7 Pins 2mm Spacing Pre-tin Coating

JST
Standard range
Order Code:

04-4885

Brand: JST MPN: B7B-PH-K-S (LF)(SN)
Qty Unit Price (Ex VAT)
1+ £0.490
125+ £0.300
500+ £0.280
1250+ £0.260
2500+ £0.250
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
993 in stock, despatched in 4 working days

The JST built-in pin strip (standard) B7B-PH-K-S (LF)(SN) is manufactured by J.S.T. and features a straight connector with 7 pins and contact spacing of 2 mm. It measures 15.9x4.5x9.4 mm and is commonly used in PCB connectors for electronic components. Typical applications include wiring connections in various electronic devices.
No. of rows 1
Board contact surface Tin plated
Case material Polyamide
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector type Pin strip, straight
Contact material Phosphor bronze
Cross section 0.05 - 22mm²
CS 2mm
Dim (L x W x H) 15.9 x 4.5 x 9.4 mm
Factory colour Ecru
Height 9.4mm
Industrial packaging No
Insulation material Polyamide
Length 15.9mm
Manufacturer part # B7B-PH-K-S (LF)(SN)
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Misc Attribute 2 B7B-PH-K-S (LF)(SN)
Nominal current 2A
Nominal current - rounded value 2A
Nominal current (details) 2A
Nominal voltage (details) voltage:100V AC
Pin Ø 0.5mm
Pin shape Square
Pins 7
Pins per row 7
RoHS-compliant Yes
Series PH
Total number of pins 7
Type Built-in pin strip (standard)
Width 4.5mm
