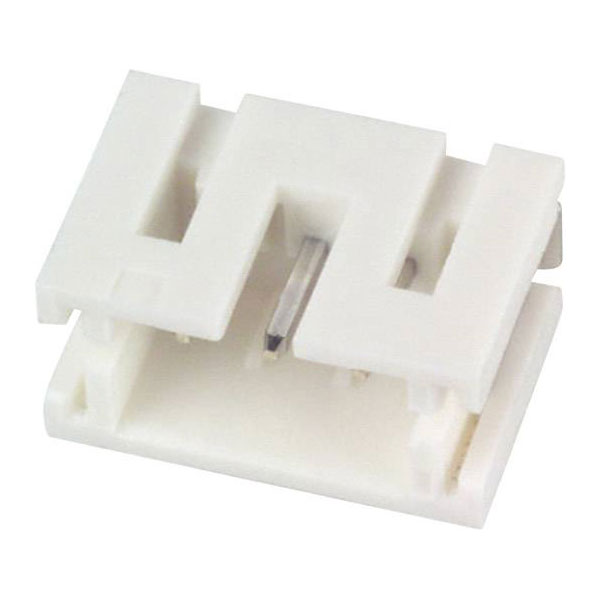

JST B3B-PH-SM4-TB (LF)(SN) Pin Strip 3 Pins 2mm Spacing Pre-Tin Coated

JST
Standard range
Order Code:

04-4863

Brand: JST MPN: B3B-PH-SM4-TB (LF)(SN)
Qty Unit Price (Ex VAT)
1+ £0.478
125+ £0.410
500+ £0.360
2500+ £0.320
5000+ £0.310
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
125 in stock, despatched in 4 working days

The JST built-in pin strip B3B-PH-SM4-TB (LF)(SN) features a total of 3 pins with 2 mm contact spacing, suitable for compact electronic applications. Manufactured by JST, this standard pin strip offers reliable connectivity for circuit board interfaces. It is commonly used in consumer electronics and lightweight industrial equipment.
No. of rows 1
Board contact surface Tin plated
Case material Polyamide
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector type Pin strip, straight
Contact material Phosphor bronze
Cross section 0.05 - 22mm²
CS 2mm
Dim (L x W x H) 7.9 x 5.5 x 9.4 mm
Factory colour Ecru
Height 9.4mm
Industrial packaging No
Insulation material Polyamide
Length 7.9mm
Manufacturer part # B3B-PH-SM4-TB (LF)(SN)
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Misc Attribute 2 B3B-PH-SM4-TB (LF)(SN)
Nominal current 2A
Nominal current - rounded value 2A
Nominal current (details) 2A
Nominal voltage (details) voltage:100V AC
Pin Ø 0.5mm
Pin shape Square
Pins per row 3
RoHS-compliant Yes
Series PH
Total number of pins 3
Type Built-in pin strip (standard)
Width 5.5mm
